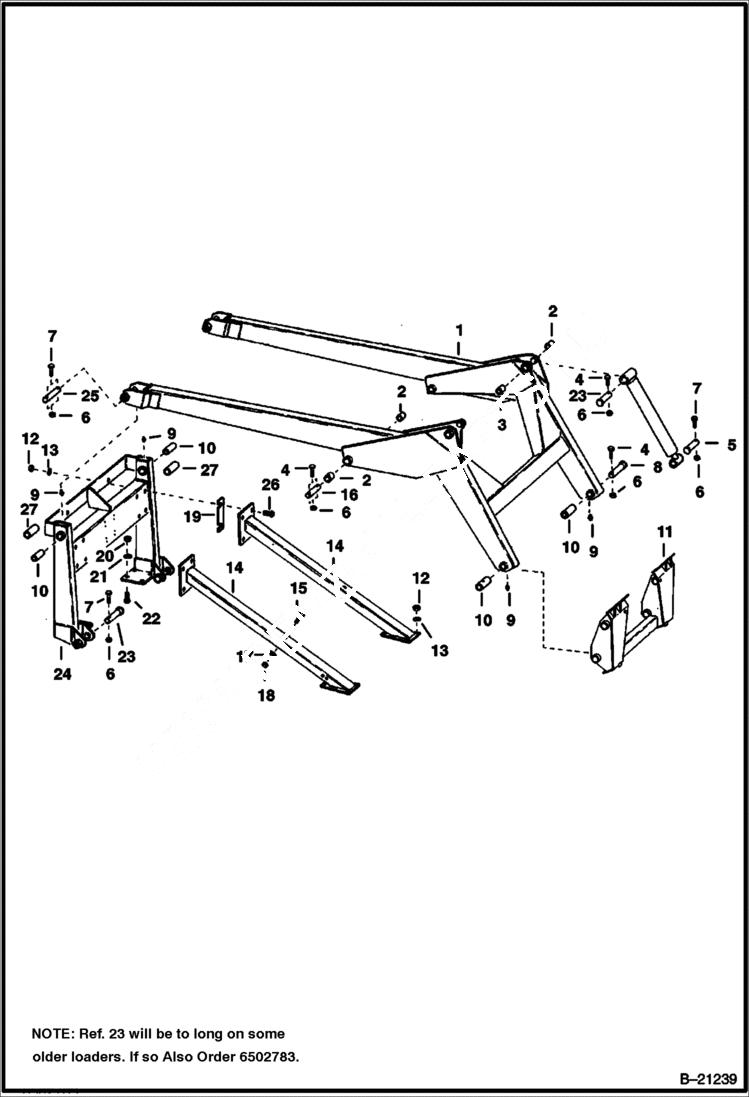

Запчасти Bobcat 600s LIFT ARMS & BOB-TACH MAIN FRAME

1

KIT NLA - lift arm - Was 6567594 - A

2

6502822

BUSHING notched - .879'' (22,3 mm) I.D. x 1.125'' (32 mm) O.D. x 1.06'' (26,9 mm)

3

6508743

BUSHING .879'' (22,3 mm) I.D. x 1.26'' (32 mm) O.D. x 1.312'' (33,3 mm)

4

17C536

BOLT

5

PIN See Illustration BOB-TACH/ B21230 See Illustration BOB-TACH/ A1216

6

91D5

NUT 5 Was 81D000005B - A

7

17C532

BOLT 5

8

PIN See Illustration BOB-TACH/ B21230 See Illustration BOB-TACH/ A1216

9

36H25

FITTING

10

6502787

BUSHING press in - .890'' (22,6 mm) I.D. x 1.126'' (32 mm) O.D. x 3'' (76,2 mm)

11

BOB-TACH See Illustration BOB-TACH/ B21230 See Illustration BOB-TACH/ A1216

12

85D8

NUT, 5

13

4E8

WASHER

14

BRACE NLA - Was 6504839 - A

15

17C640

BOLT 5

16

PIN NLA - .871'' (22,1mm) x 4.44'' (112,7mm) - Was 6502782 - A

17

4E6

WASHER

18

61D6

NUT 5

19

SHIM NLA - upright brace - Was 6505358 - A

20

85D10

NUT, 5

21

4E10

WASHER

22

6514516

BOLT carriage

23

6502781

PIN .871'' (22,1 mm) x 5.38'' (136,6 mm)

24

UPRIGHT NLA - Was 6504740 - A

25

6502784

PIN .871'' (22,1 mm) x 5.75'' (146,05 mm)

26

17C824

BOLT 5

27

BUSHING NLA - Weld-on - W/Ref. 10 - Was 6501187 - A
