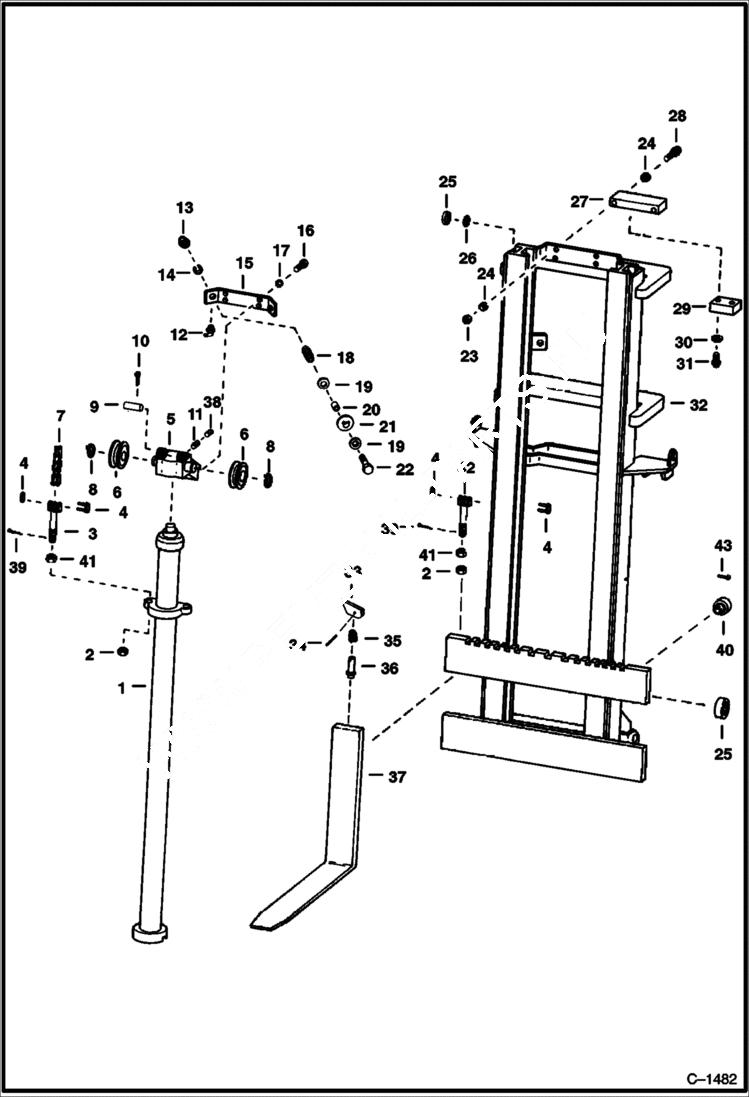

Запчасти Bobcat 600s VERTICAL MAST ACCESSORIES & OPTIONS

1

CYLINDER See Illustration LIFT CYLINDER/ C1481 NLA - 10 FT. (3048MM) - WAS 2307648 - A

1

2307656

CYLINDER See Illustration LIFT CYLINDER/ C1481 12' (3657,6MM)

2

NUT NLA - Was 351713 - A

3

772623

PIN ROD

4

LINK NLA - Was 616501B - A

5

1691359

PISTON HD

6

343967

BEARING roller

7

CHAIN NLA - bulk - For 12' (3657,6 mm) Order 111 Pitches - W/Link For 10' (3048 mm) Order 95 Pitches - W/Link - Was 669638B - A

8

658128

RING, SNAP

9

1697965

PIN

10

1F212

PIN

11

SET SCREW NLA - Was 15G608 - A

12

11H15

GREASE FITTING

13

66D12

NUT

14

616809

WASHER

15

1750372

BRACKET guide

16

93G820

BOLT

17

22E8

WASHER

18

1750034

SHAFT W/Holes

18

SHAFT NLA - W/O holes - Was 2327843 - A

19

1309680

WASHER thrust

20

BUSHING NLA - Was 1315279 - A

21

1750033

ROLLER

22

1750035

RETSCREW

23

61D10

NUT

24

23E10

WASHER

25

746623

BEARING .9843'' (25 mm) ID, 3'' (76,2 mm) OD, .33'' (8,38 mm) W

26

669614

SHIM

27

1714834

BLOCK stop

28

BOLT NLA - Was 93G001048B - A

29

PAD NLA - Was 1668968 - A

30

25E13

WASHER 5

31

SCREW NLA - Was 94G412 - A

32

1676864

RAIL inner - 10' (3048mm)

32

1676872

RAIL inner - 12' (3657,6mm)

33

6517883

LEVER

34

666888

PIN

35

6517882

SPRING

36

6517884

PIN

37

FORK SALES - W/Ref. 33-36

38

1309436

SCREW

39

1F416

PIN

40

715093

BEARING 1.250'' (31,75 mm) ID, 2.25'' (57,15 mm) OD, .75'' (19,05 mm) W

41

62D8

NUT

42

ROD NLA - Was 1773002 - A

43

1729514

PIN
