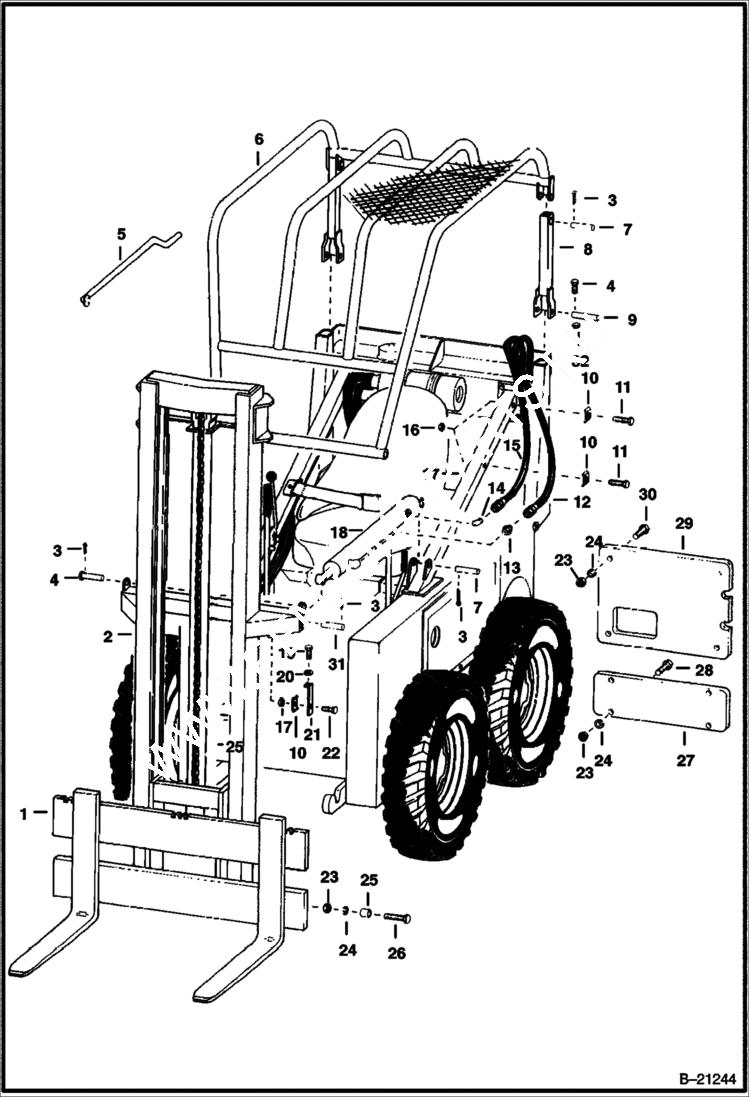

Запчасти Bobcat 600s VERTICAL FORKLIFT M- 610 Clark ACCESSORIES & OPTIONS

1

FORK See Illustration VERTICAL MAST/ C1482 SALES

2

MAST See Illustration VERTICAL MAST/ C1482

3

PIN NLA - Was 6505277 - A

4

17C528

BOLT

5

6506656

ROD throttle

6

6506648

GUARD overhead

7

PIN NLA - Was 6502782 - A

8

6506649

SUPPORT

9

6503473

PIN

10

6502203

CLAMP

11

17C648

BOLT 5

12

6506651

HOSE

13

89F5

CONNECTR

14

83F5

ELBOW

15

HOSE NLA - Was 6506650 - A

16

81D6

NUT

17

6506646

BRACE L.H.

17

6506647

BRACE R.H.

18

6506652

CYLINDER See Illustration TILT CYLINDER/ B20849 TILT

19

17C616

BOLT 5

20

25E17

WASHER 5

21

6502428

BRACKET

22

17C620

BOLT

23

61D8

NUT 5

24

4E8

WASHER

25

BUSHING NLA - Was 6506678 - A

26

17C848

BOLT

27

6548613

COUNTERWEIGHT 45 lbs.

28

17C880

BOLT

29

COUNTERWEIGHT NLA - 85 lbs. - Was 6503167 - A

30

17C872

BOLT

31

6506565

PIN

32

91D5

NUT 5 Was 81D000005B - A
