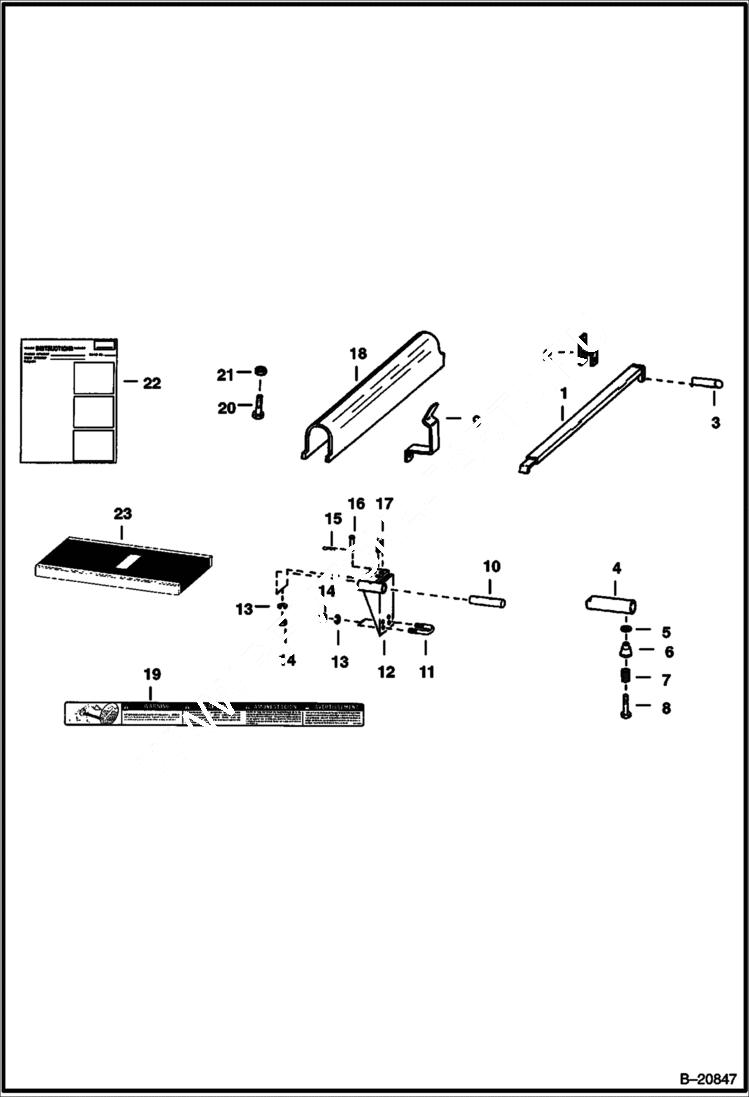

Запчасти Bobcat 600s LIFT ARM STOPS ACCESSORIES & OPTIONS

1

LOCK NLA - Order Ref. 18

2

6504729

BRACKET

3

6515499

PIN

4

6541372

PIN

5

6541964

SPACER

6

RETAINER NLA - Was 6541515 - A

7

6541514

SPRING

8

17C652

BOLT

9

6563603

BRACKET

10

6541418

PIN

11

6541628

U-BOLT

12

6541415

BRACKET

13

4E8

WASHER

14

61D8

NUT 5

15

1318565

COTTER PIN

16

6541981

PIN

17

6505029

U-BOLT

18

6559550

STOP W/Ref. 19 - Was 6563449 - B

18

KIT NLA - Was 6563336 - A

19

6563423

DECAL

20

17C616

BOLT 5

21

85D6

NUT, 5

22

6566056

INSTRUCTIONS

23

6504728

KIT lift arm - Ref. 1-3 - Order Ref. 18

23

6541963

KIT lift arm - Ref. 4-8 - Order Ref. 18

23

KIT NLA - lift arm - Ref. 10-17 - Order Ref. 18
