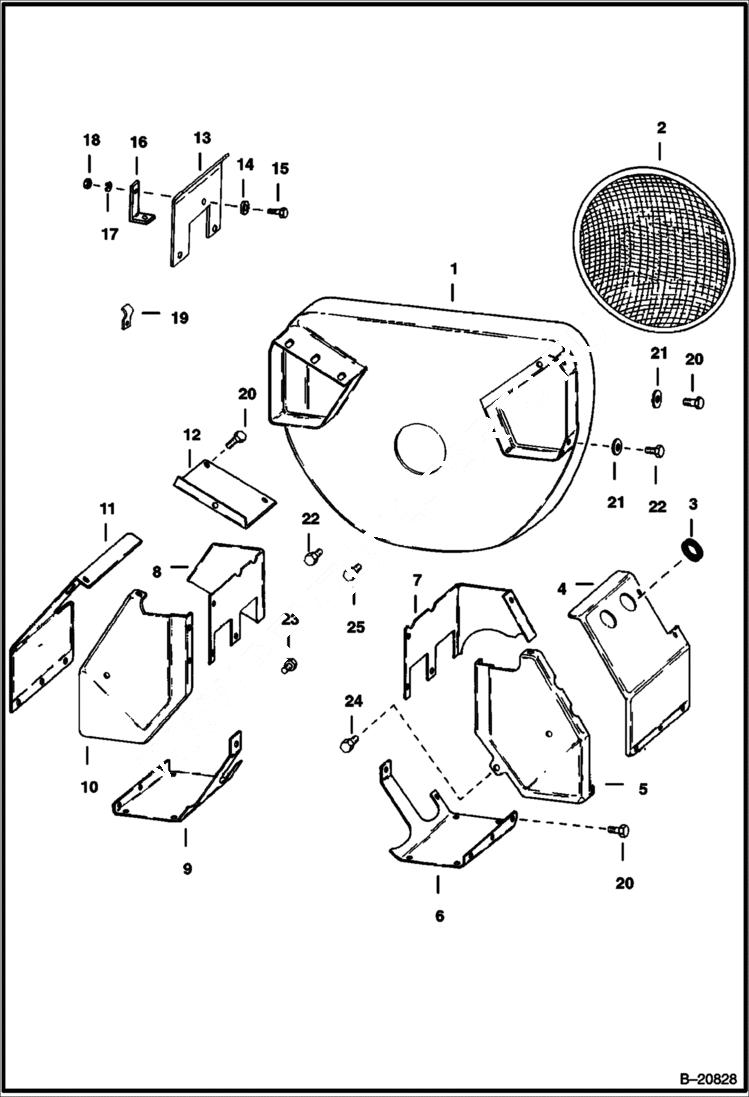

Запчасти Bobcat 600s ENGINE SHROUDING POWER UNIT

1

SHROUD NLA - flywheel - Was 6510091 - A

2

6516370

SCREEN rotating

3

6516359

CAP metal

4

6516358

SHROUD cylinder

5

6516357

SHROUD rear cover

6

6516356

SHROUD lower cylinder

6

6519333

SHROUD Use on Pulpwood Loader

7

6516355

SHROUD heat deflector

8

6516353

SHROUD heat deflector

9

6516354

SHROUD lower cylinder

9

6519332

SHROUD Use on Pulpwood Loader

10

6516352

SHROUD rear cover

11

6513155

SHROUD cylinder head - Was 6516351 - A

12

6516371

SHROUD side cover

13

DEFLECTOR NLA - heat - VF4D Engine - Was 6516366 - A

13

6516367

DEFLECTOR heat - VH4D Engine

14

6516365

WASHER

15

17C408

BOLT

16

6516363

BRACE heat deflector - VF4D Engine

16

6516364

BRACE heat deflector - VH4D Engine

17

4E4

WASHER

18

61D4

NUT 5

19

6516360

CLIP ignition cables

20

47G410

SCREW Was 47G-401 - B

21

4E5

WASHER

22

17C508

BOLT

23

47G408

SCREW

24

47G412

SCREW

25

6516361

BOLT Use to Center Flywheel
