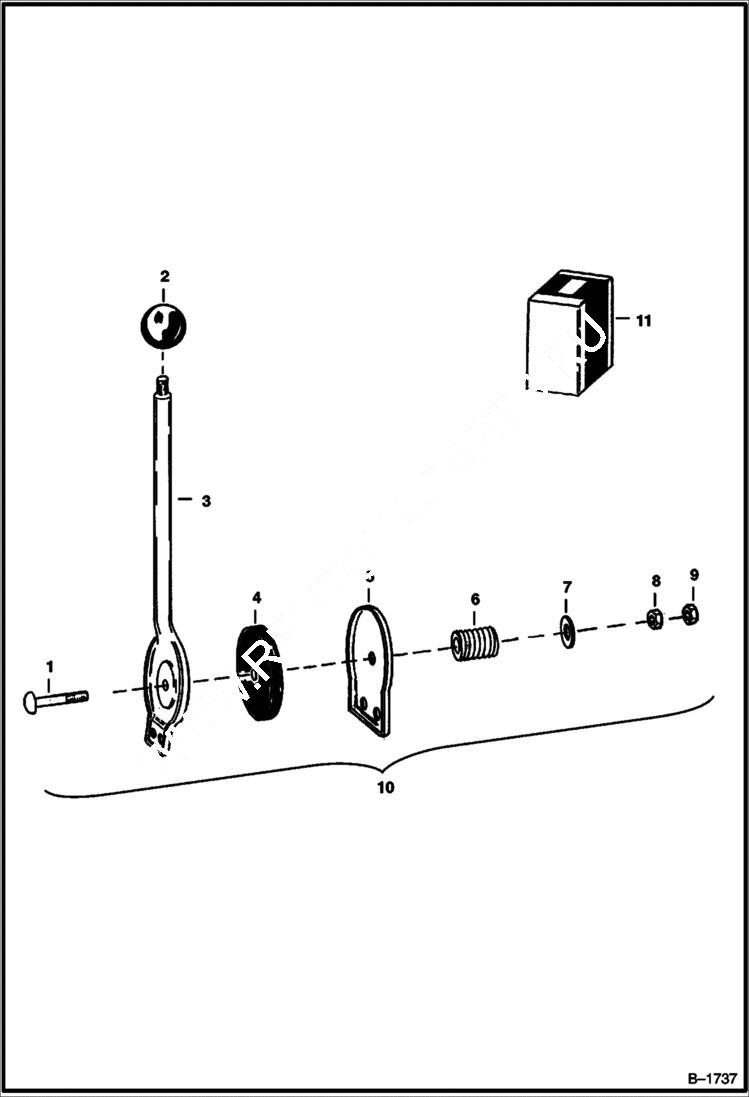

Запчасти Bobcat 600s THROTTLE CONTROL POWER UNIT

1

7C632

BOLT

2

6515888

KNOB ball

3

6506189

HANDLE

4

6503388

BLOCK

5

PLATE NLA

6

6704453

SPRING Was 6503387 - A

7

6505623

WASHER

8

7D6

NUT

9

61D6

NUT 5

10

THROTTLE NLA - assembly - Order Ref. 11

11

CONTROL See Illustration THROTTLE/ C2490 NLA -Throttle - Was 6561436 - A
