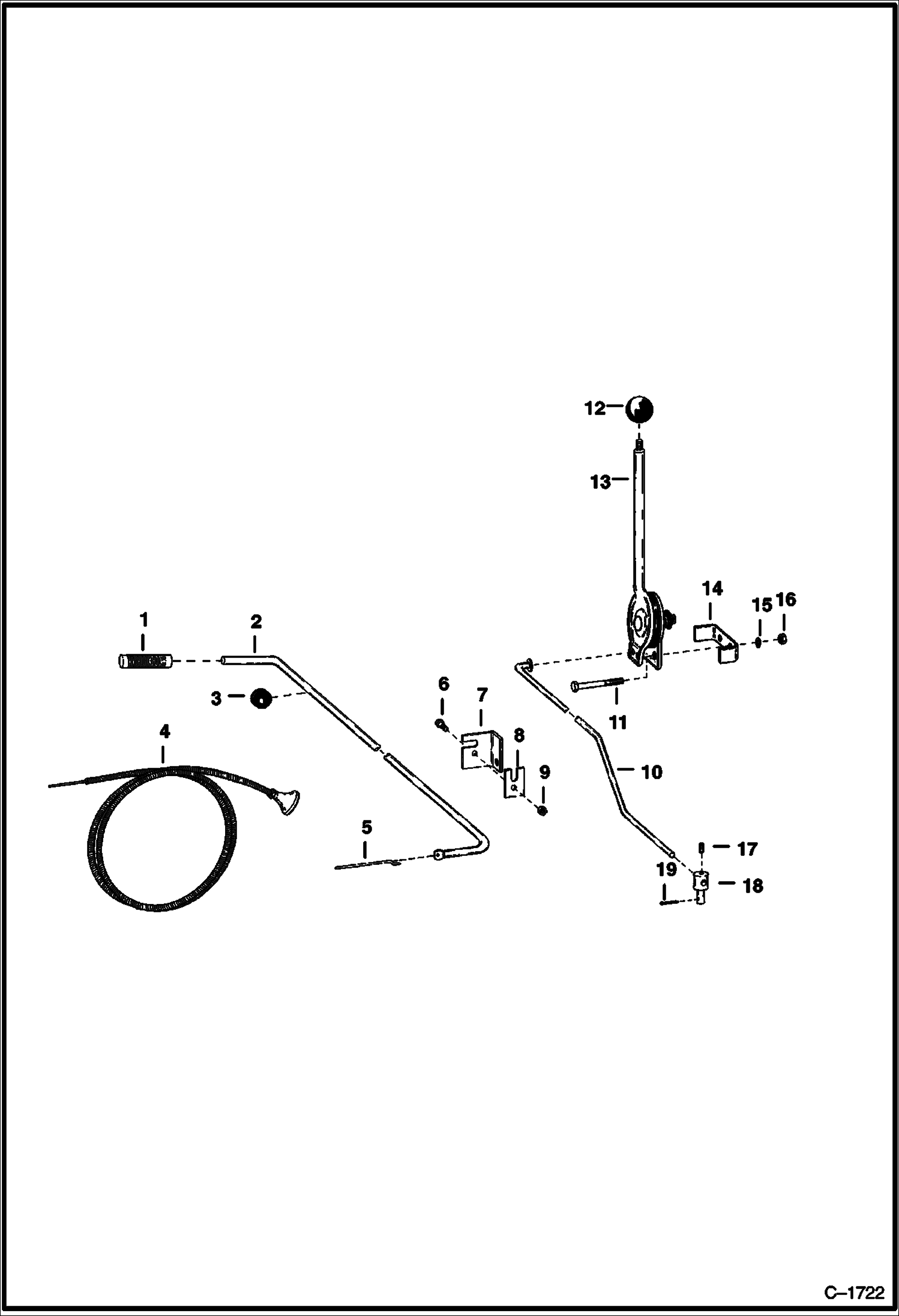

Запчасти Bobcat 600s THROTTLE & CHOKE CONTROL LINKAGE POWER UNIT

1

GRIP NLA - Was 6510299 - A

2

6547557

ROD choke

3

6519484

GROMMET rubber

4

6515169

CABLE choke

4

CABLE NLA - choke - Was 6510084 - A

5

6546945

LINK

6

17C410

BOLT 10

7

6547951

BRACKET choke rod

8

6546844

BRACKET choke

9

81D4

NUT

10

ROD NLA - Was 6559097 - A

11

17C640

BOLT 5

12

6515888

KNOB

13

CONTROL See Illustration THROTTLE CONTROL/ B1737 NLA - throttle

14

STOP NLA - throttle - Was 6502976 - A

15

4E6

WASHER

16

61D6

NUT 5

17

15G505

SCREW

18

6551463

BLOCK

19

1F308

PIN, COTTER
