FLYWHEEL ALTERNATORS Wisconsin 2 Section

Запчасти Bobcat 600s FLYWHEEL ALTERNATORS Wisconsin 2 Section ELECTRICAL SYSTEM

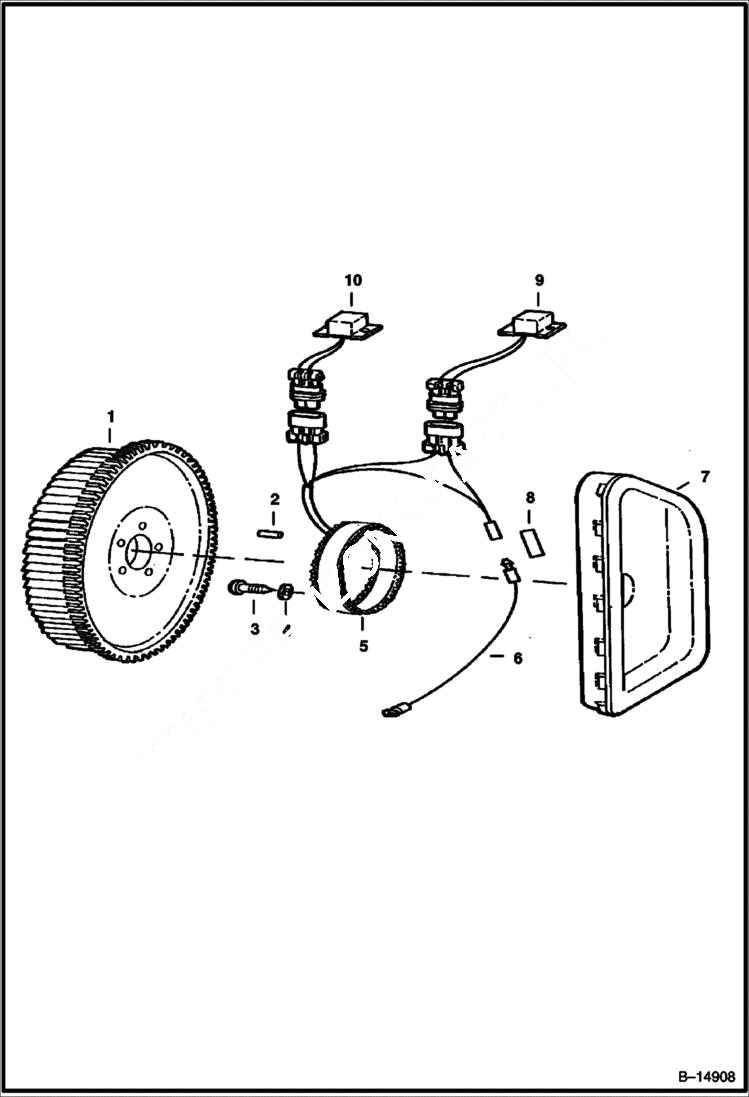

Схема запчастей Bobcat 600s - FLYWHEEL ALTERNATORS Wisconsin 2 Section ELECTRICAL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6516681

FLYWHEEL W/Ring Gear

1

6516682

RING GEAR

2

6516621

ROLL PIN

3

22G1016

SCREW Stator Mounting

4

6516647

WASHER

5

6516685

STATOR ASSY.

6

6516686

WIRE Stator Plug to Ammeter

7

COVER NLA - gear - Was 6516527 - A

8

6516689

INSULATOR ammeter wire connector

9

6516690

REGULATOR section

10

6516691

RECTIFIER section
