Запчасти Bobcat 600s BOSCH GENERATOR Deutz ELECTRICAL SYSTEM

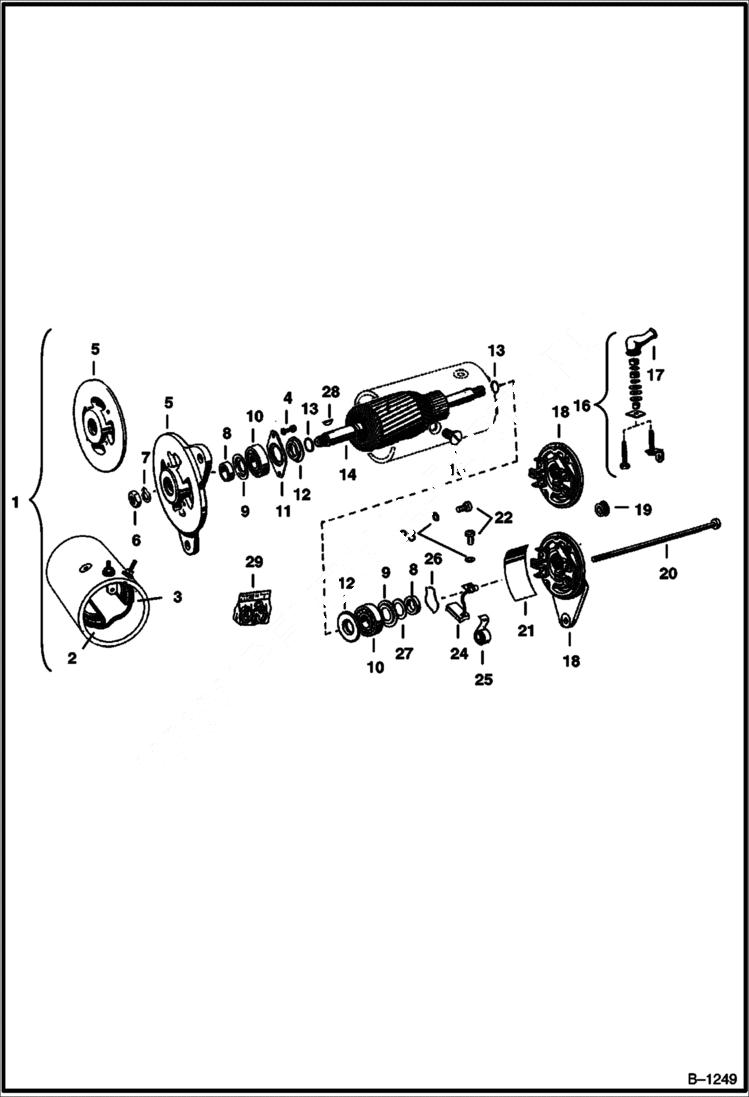

Схема запчастей Bobcat 600s - BOSCH GENERATOR Deutz ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6516188

GENERATOR Ref. 2 - 28

2

3726889

COIL field - No. 1

3

3726890

COIL field - No. 2

4

SCREW NSS

5

4148027

FRAME drive end

6

NUT NSS

7

WASHER NSS

8

BUSHING NSS

9

SHIELD NSS

10

4123591

BEARING

11

3726900

RETAINER bearing

12

SHIELD NSS

13

SNAP RING NSS

14

4148021

ARMATURE ASSY.

15

6517909

SCREW coil mounting

16

3726902

KIT terminal

17

4148097

CAP rubber

18

4148030

FRAME W/Ref. 22-25

19

3726897

PLUG rubber

20

3726898

SCREW

21

3726891

STRIP insulating

22

6517922

SCREW

23

6EM40

LOCKWHSR.

24

3726895

BRUSHES carbon

25

3726896

SPRING brush

26

WASHER NSS

27

WASHER NSS

28

6517916

KEY woodruff

29

3726903

KIT armature hardware - Ref. 4, 6 - 9 & 26

Выбрано товаров: 29
