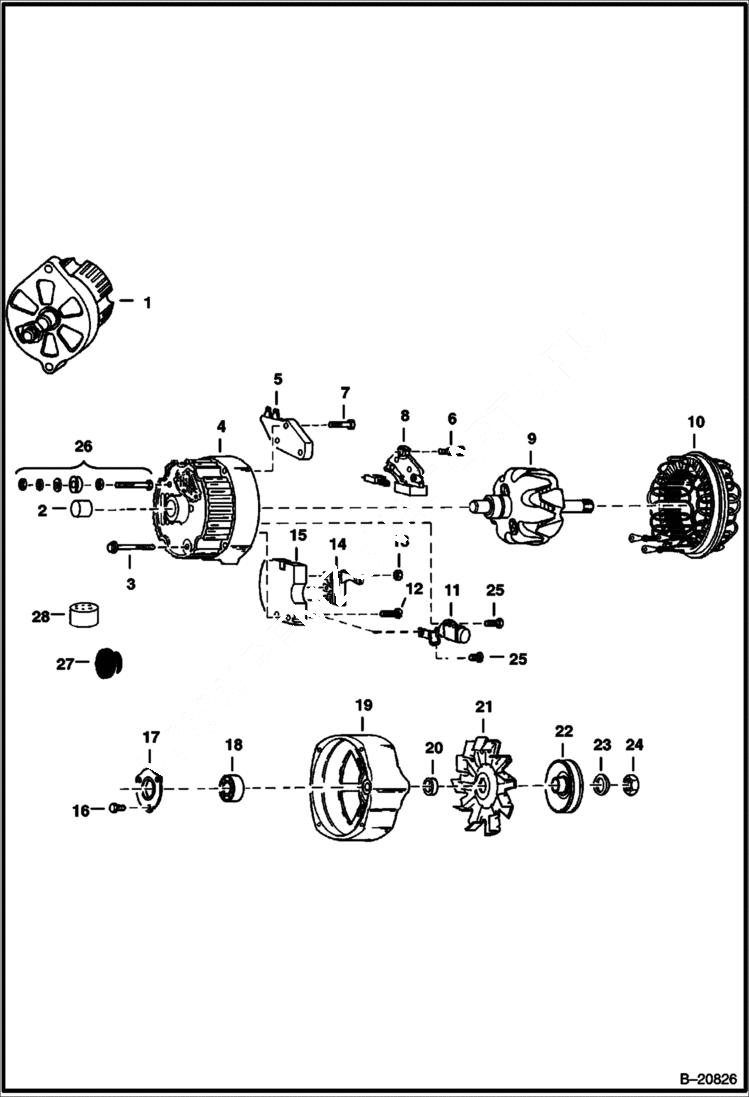

Запчасти Bobcat 600s ALTERNATOR Delco 1105076 - Closed ELECTRICAL SYSTEM

1

ALTERNATOR NLA - Less Pulley & Fan - Order 6599740REM - Was 6654209 - A

1

6599740REM

ALTERNATOR

2

BEARING NLA - Was 999306B - A

3

BOLT NLA - Was 897467B - A

4

6511954

FRAME W/Ref. 2

5

REGULATOR NLA - voltage - Was 994381B - A

6

6511957

BOLT

7

6599766

BOLT

8

6599770

HOLDER W/Brush Assy.

9

6599772

ROTOR

10

2343911

STATOR Was 907953B - A

11

6654210

CAPACITOR

12

6599768

BOLT

13

12D8

NUT

14

6599769

DIODE

15

6599767

RECTIFIER

16

45G1008

BOLT

17

RETAINER NLA - Was 850315B - A

18

784950

BEARING Was 905350B - A

19

HOUSING NLA - Was 6598229 - A

20

6598060

COLLAR

21

329884

FAN

22

6541902

PULLEY

23

NLA - Was 794584B - A

24

NUT NLA - Was 859369 - A

25

BOLT NLA - Was 991219B - A

26

TERMINAL PKG. NLA - Was 905952B - A

27

BOOT NSS

28

CONNECTOR NSS
