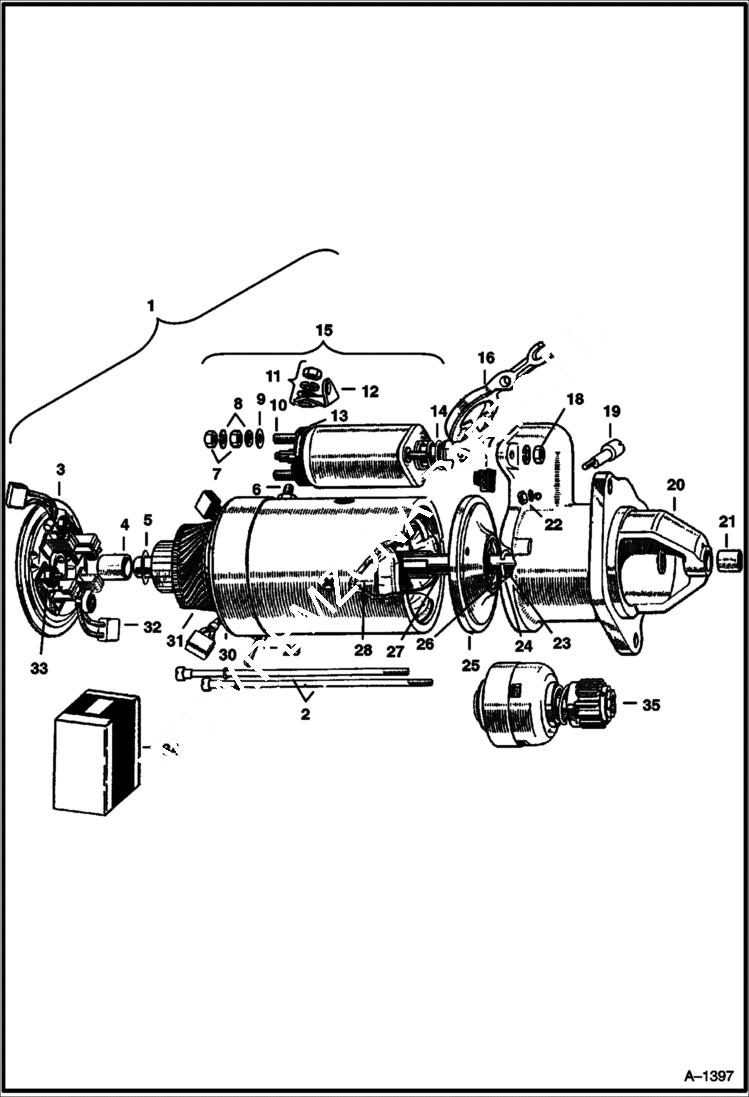

Запчасти Bobcat 600s LUCAS STARTER Petter - S/N 73588 & Below ELECTRICAL SYSTEM

1

6516728

STARTER Model M45G Series 21670

2

6516729

BOLT

3

3883498

FRAME

4

3883455

BUSHING

5

3883436

WASHER

6

TERMINAL NSS - main

7

NUT NSS

8

3883441

WASHER

9

WASHER NSS

10

3883434

SCREW terminal

11

TERMINAL NSS - hardware

12

3883466

LEAD solenoid to coil

13

BASE NSS - solenoid

14

3883488

SPRING plunger

15

6516731

SOLENOID

16

3883467

LEVER engagement

17

3883465

GROMMET drive end bracket

18

SCREW NSS - W/washer

19

6516732

SCREW pivot

20

6516733

BRACKET W/Ref. 21

21

3883505

BUSHING

22

3883464

NUT pivot screw

23

3883459

WASHER retaining

24

3883460

WASHER brake driving - Was 3884360 - D

25

3883508

FRAME brake - W/Ref. 27

26

3883468

BRAKE SHOE W/spring

26

3883454

SPRING brake shoe

27

3883506

BUSHING brake frame

28

3883461

COIL field - Set of 4

29

3883491

SCREW cover band

29

3883440

NUT

30

6516734

BAND cover - W/Ref. 29

31

3883503

ARMATURE

32

3883457

BRUSHES Set of 4

33

6516735

SPRING brush tension - Set of 4

34

3883456

KIT sundry parts

35

6516736

DRIVE ASSY.
