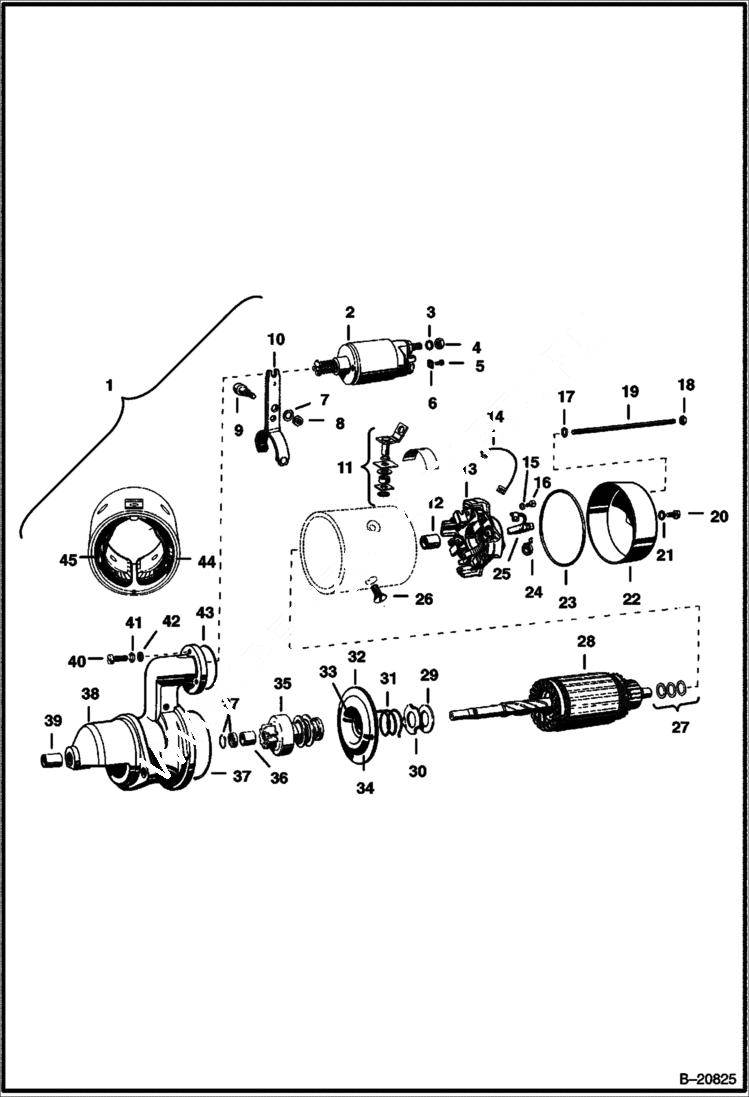

Запчасти Bobcat 600s BOSCH STARTER Deutz ELECTRICAL SYSTEM

1

STARTER See Illustration STARTER/ C2378 NLA - Bosch 0-001-354-082 - Order 6513391

2

3726935

RELAY W/Ref. 5 & 6

3

6EM100

WASHER

4

6517900

NUT contact screw

5

6517901

SCREW slotted head

6

3726936

BRACKET

7

4E5

WASHER

8

6517902

NUT

9

3726918

SCREW

10

3726918

SCREW

11

6517903

HARDWARE hardware

12

3726930

BUSHING bearing

13

3726929

FRAME W/Ref. 12, 15, 16, 24 & 25

14

6518235

LEAD connecting

15

6EM40

LOCKWHSR.

16

6517905

SCREW

17

4151803

WASHER

18

1DM6

NUT

19

6517906

BOLT

20

6517907

SCREW

21

6517908

WASHER

22

3726933

COVER end - W/Ref. 19

23

3739048

GASKET end cover

24

4148070

SPRING brush

25

BRUSH SET NLA - Was 3726931 - A

26

6517909

SCREW

27

6513369

WASHER SET Was 6517910 - A

28

4148055

ARMATURE

29

3726922

WASHER insulating

30

3726923

PLATE spring

31

3726924

SPRING helical

32

3726925

SEAL center bearing

33

3726921

BUSHING center bearing

34

3726920

BEARING middle - W/Ref. 33

35

4148080

DRIVE W/Ref. 36

36

3726927

BUSHING drive

37

6518230

O-RING drive end

38

6517911

FRAME drive end - W/Ref. 39

39

3739046

BUSHING drive end frame

40

6517912

SCREW

41

6EM50

LOCK-WSHR

42

6517914

WASHER

43

6518231

O-RING

44

COILS NLA - field 3 & 4 - Was 3726914 - A

45

3726913

COILS field 1 & 2
