Запчасти Bobcat 600s DELCO STARTER Petter ELECTRICAL SYSTEM

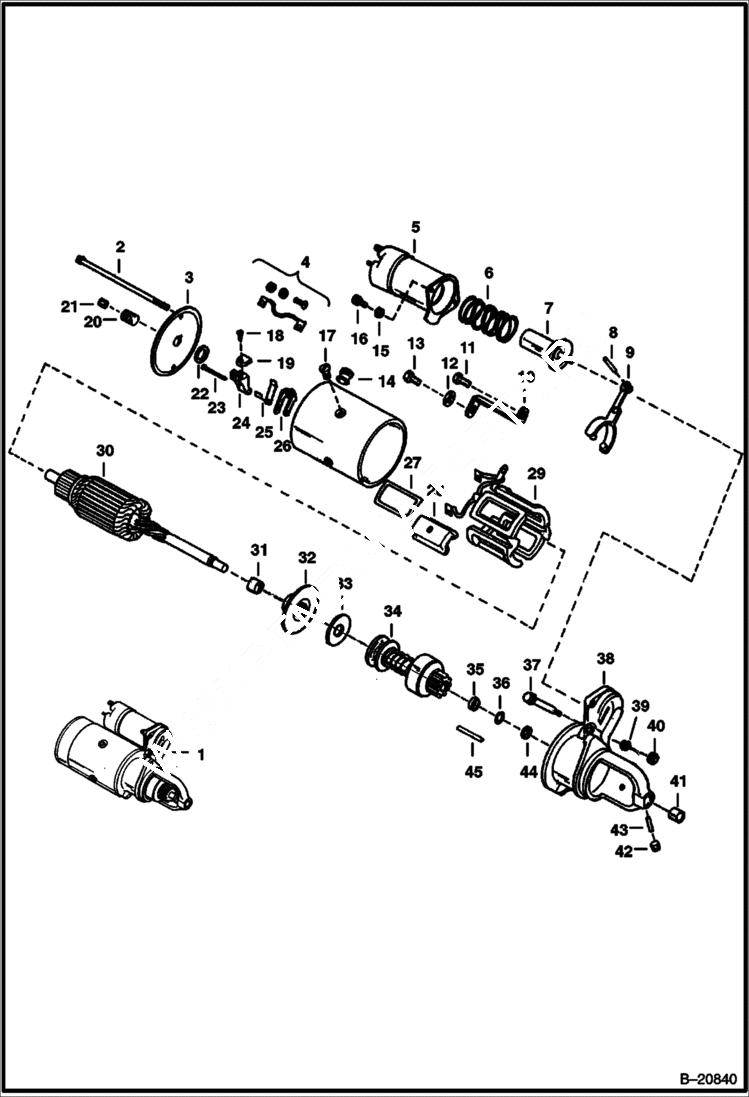

Схема запчастей Bobcat 600s - DELCO STARTER Petter ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6516222

STARTER

1

6516222REM

STARTER

2

BOLT Was 895675B - A

3

FRAME NLA - Was 883008B - A

4

877650

SUPPORT brush support

5

884581

SWITCH

6

SPRING NSS - plunger

7

PLUNGER NSS

8

PIN NLA - shift lever

9

896126

LEVER shift

10

6517495

CONNECTOR

11

BOLT NLA

12

15E10

WASHER

13

SCREW NLA - field lead

14

GROMMET NLA - In Field Frame

15

4E4

WASHER

16

SCREW solenoid attaching - Was 43G000408B - A

17

SCREW NLA - pole shoe

18

SCREW NLA - brush attaching - Was 3737375B - A

19

BRUSHES NLA - Was 1810250B - A

20

WICK NLA

21

PLUG NLA - wick - Was 12F000012B - A

22

WASHER NLA

23

PIN NLA - brush holder

24

6656398

HOLDER brush - insulated - Was 891252B - A

25

6656399

SPRING brush - Was 871517B - A

26

880603

HOLDER brush - Grounded

27

INSULATOR NLA - field coil

28

POLE SHOE NLA

29

COIL NLA - field assy. - 4 Coils - Was 991101B - A

30

6511629

ARMATURE Was 991100B - A

31

NLA - thrust plate - Was 887839B - A

32

6630411

PLATE center bearing - W/Ref. 35 - Was 871524 - A

33

WASHER NLA - thrust plate - Was 871610B - A

34

6645247

DRIVE ASSY. Was 899271B - A

35

COLLAR NLA - stop

36

RING, SNAP NLA

37

SCREW NLA - shift lever

38

HOUSING NLA - drive - Was 895674B - A

39

4E5

WASHER

40

NUT NLA

41

860669

BUSHING drive end

42

16F2

PLUG wick

43

WICK NLA - drive end

44

COLLAR NLA - thrust

45

DOWEL PIN NLA

Выбрано товаров: 46
