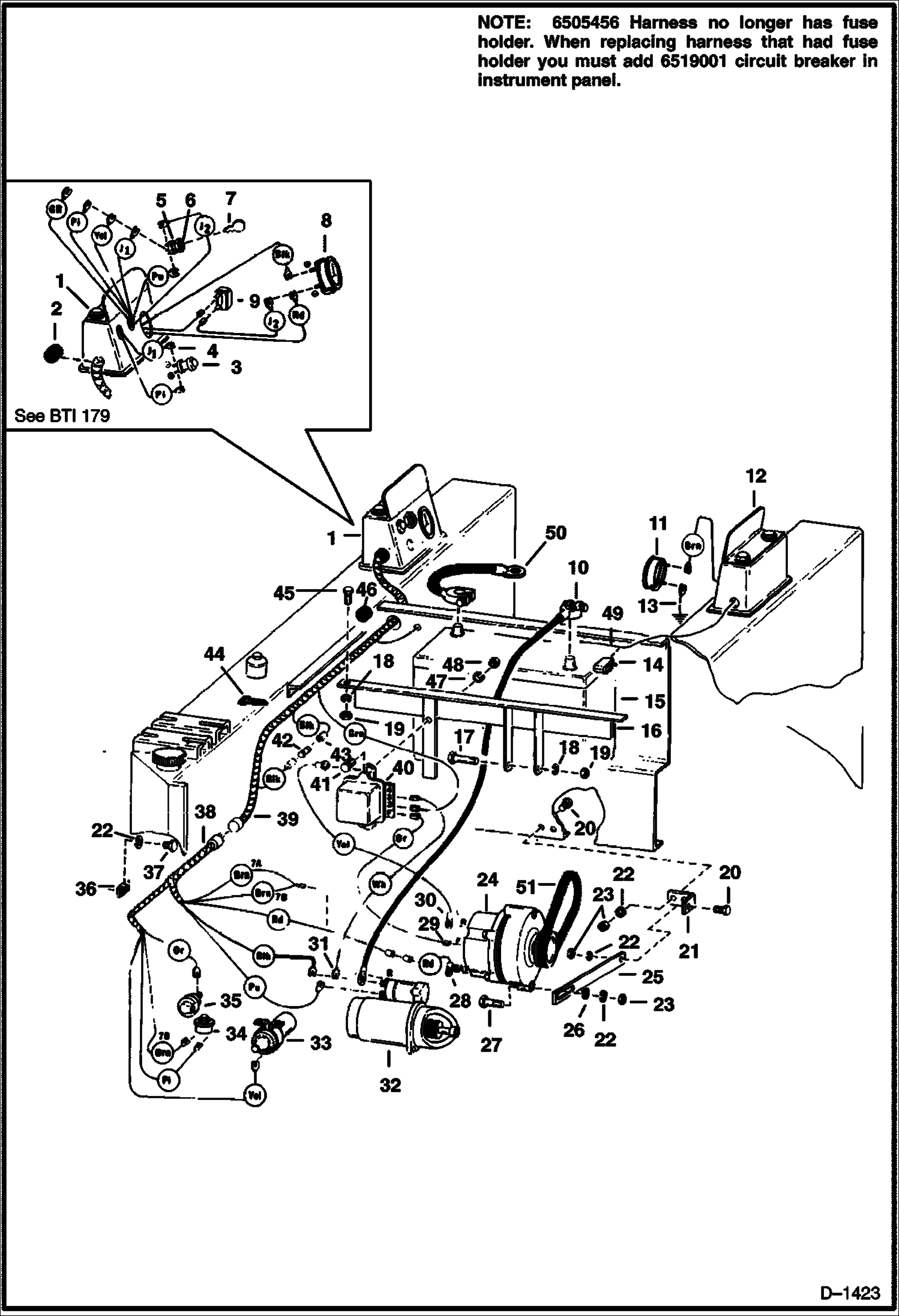

Запчасти Bobcat 600s MAIN FRAME ELECTRICAL CIRCUIT Wisconsin - W/Alternator ELECTRICAL SYSTEM

1

PANEL See Illustration MAIN FRAME ATTACHING PARTS/ D1052 instrument

2

565049

GROMMET

3

6515427

LIGHT oil pressure

4

WIRE NLA - jumper

5

6518763

SWITCH ignition - W/Ref. 7

6

6502904

NUT ignition

7

6505412

KEY ignition

8

6512807

GAUGE ammeter

9

6519001

BREAKER circuit

10

667483

CABLE battery

11

6660109

HOURMETER Was 6551203 - A

12

PANEL See Illustration MAIN FRAME ATTACHING PARTS/ D1053 instrument

13

WIRE NLA - ground

14

CLIP NLA - Was 6502236 - A

15

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

15

6630154

CAP gang - Danger

15

6630155

CAP gang - Poison

15

6514898

CAP tilt-tite

16

BRACKET NLA -mount - Was 6505265 - A

17

17C648

BOLT 5

18

4E6

WASHER

19

61D6

NUT 5

20

17C516

BOLT

21

BRACKET NLA -angle - Was 6505241 - A

22

4E5

WASHER

23

61D5

NUT

24

ALTERNATOR See BTI258 for alternator changeover kit

25

6547125

BRACKET

26

25E15

WASHER

27

17C524

BOLT

28

WIRE NLA - jumper

29

WIRE NLA - jumper

30

WIRE NLA - jumper

31

WIRE NLA - jumper

32

6515795

STARTER See Illustration STARTER/ A1379

33

887408

IGN COIL ignition

34

1550963

SWITCH hourmeter

35

SWITCH NLA - oil pressure - Was 6516345 - A

36

6502344

CLIP

37

17C512

BOLT 5

38

6555140

HARNESS See BTI173 wiring

39

6505456

HARNESS wiring

40

908239

VOLT REG voltage - Use Old Mounting Bracket - Was 1810770 - A

41

17C416

BOLT

42

608869

FUSE

43

HOLDER NLA - W/40 amp. fuse - Was 733642 - A

44

6610510

TIE Was 1715312 - A

45

17C616

BOLT 5

46

6515603

GROMMET plastic

47

4E4

WASHER

48

61D4

NUT 5

49

WIRE NLA - Was 6501209 - A

50

6553094

CABLE battery ground

51

6505371

BELT alternator
