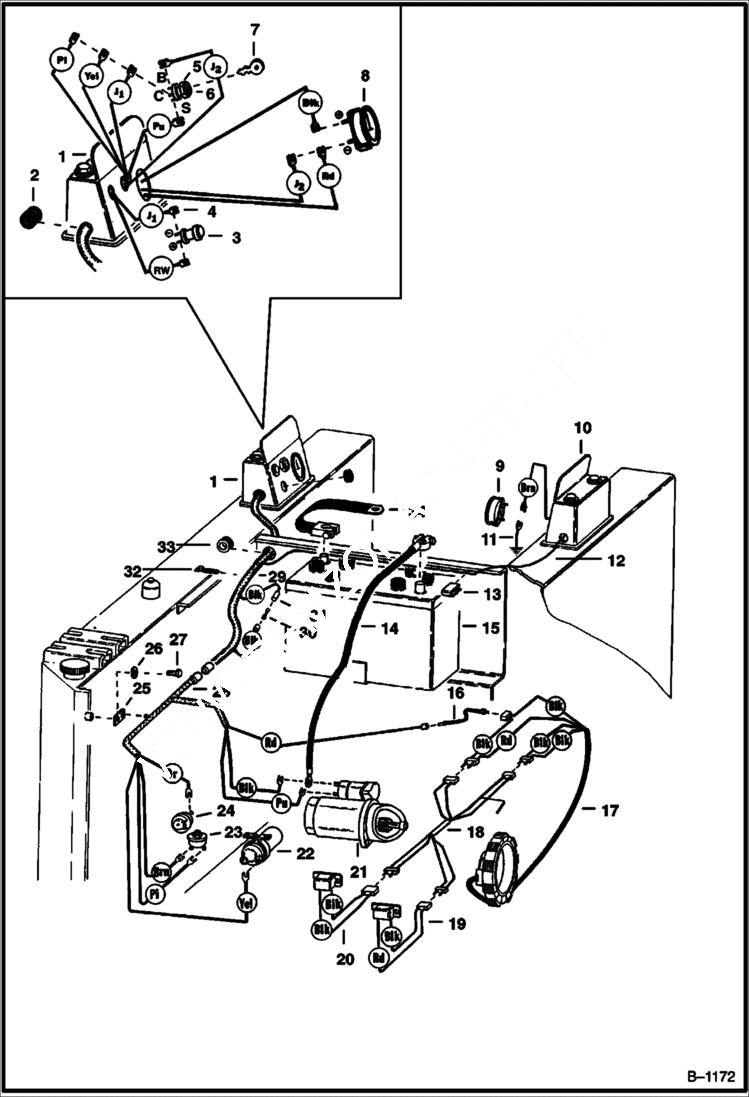

Запчасти Bobcat 600s MAIN FRAME ELECTRICAL CIRCUIT Wisconsin - Rectifier/Regulator Module - Two Unit ELECTRICAL SYSTEM

1

PANEL See Illustration MAIN FRAME ATTACHING PARTS/ D1052 instrument

2

565049

GROMMET

3

6515427

LIGHT oil pressure

4

WIRE NLA - jumper

5

6515315

SWITCH ignition - W/Ref. 7

6

6502904

NUT ignition switch

7

6505412

KEY ignition

8

6512807

GAUGE ammeter

9

6660109

HOURMETER Was 6551203 - A

10

PANEL See Illustration MAIN FRAME ATTACHING PARTS/ D1053 instrument

11

WIRE NLA - ground

12

WIRE NLA - Was 6501209 - A

13

CLIP NLA - Was 6502236 - A

14

667483

CABLE battery

15

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

15

6630154

CAP gang - Danger

15

6630155

CAP gang - Poison

15

6514898

CAP tilt-tite

16

WIRE NLA - jumper - Was 6501607 - A

17

6516685

STATOR ASSY. See Illustration ALTERNATOR KIT/ B13771 See Illustration FLYWHEEL ALTERNATORS/ B1220 for alternator changeover kit

18

HARNESS NLA - wiring - Was 6517280 - A

19

6516690

REGULATOR

20

6516691

RECTIFIER

21

STARTER See Illustration STARTER/ A1379

22

887408

IGN COIL ignition

23

1550963

SWITCH hourmeter

24

SWITCH NLA - oil pressure - Was 6516345 - A

25

6502344

CLIP

26

4E5

WASHER

27

17C512

BOLT 5

28

6555140

HARNESS See BTI173 wiring

29

6501205

HARNESS wiring

30

608869

FUSE

31

HOLDER NLA - W/40 amp. fuse - Was 733642 - A

32

6610510

TIE Was 1715312 - A

33

6515603

GROMMET plastic

34

6553094

CABLE battery ground
