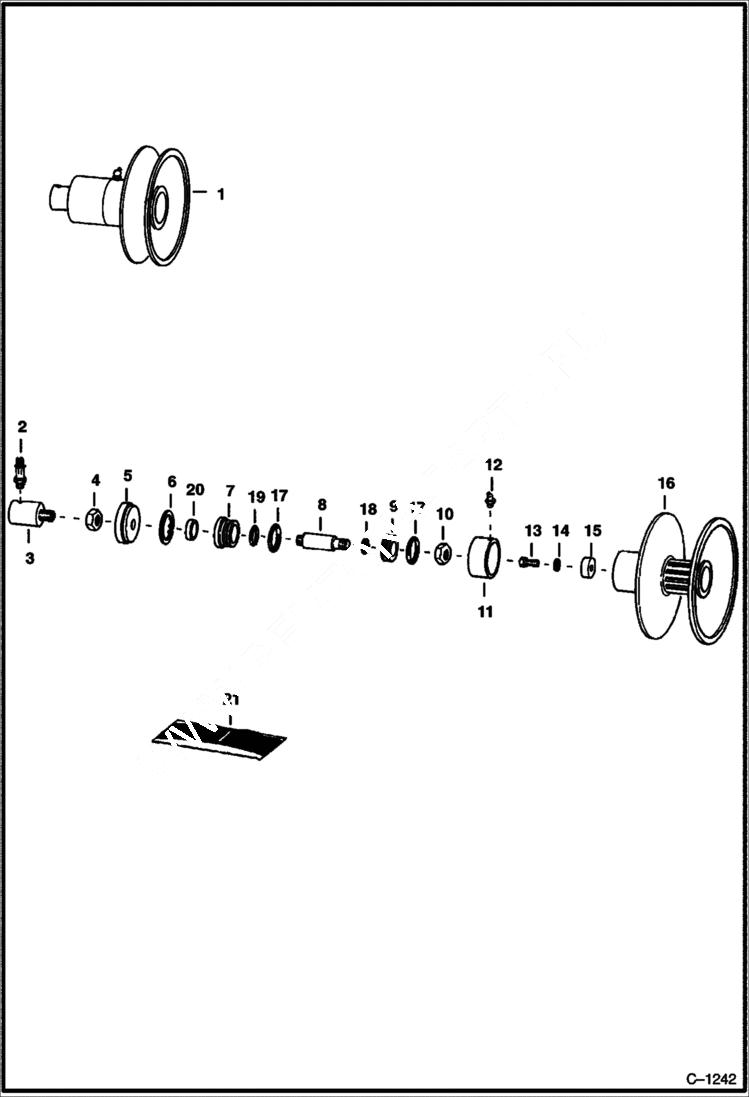

Запчасти Bobcat 600s VARIABLE SPEED DRIVE SHEAVE Wisconsin & Deutz HYDRAULIC SYSTEM

1

SHEAVE ASSY. NLA - Ref. 4-10 & 12-20 - Order (1) 6502035 Sheave Assy. & (1) 6502866 Washer - Was 6501610 - A

2

6501441

HOSE 35'' (889 mm) long

2

6515161

HOSE 24'' 609,6 mm) long

2

6505680

HOSE 22'' (558,8 mm) long

3

6515432

COUPLING See Illustration VARIABLE SPEED SWIVEL COUPLING/ A1090

4

8D12

NUT

5

CAP NLA - end - Was 6503640 - A

6

1318542

SNAP RING

7

GLAND NLA - Was 6503641 - A

8

6516216

ROD

9

PISTON NLA - Was 6503638 - A

10

8D10

NUT

11

SPACER NLA - Duetz - Was 6503639 - A

11

SPACER NLA - Wisconsin - Was 6504288 - A

12

11H25

FITTING10

13

17C624

BOLT 5

14

6E6

WASHER shakeproof

15

RETAINER NLA - Was 6505851 - A

16

SHEAVE HALVES NLA - Order (1) 6502035 Sheave Assy. & 6502866 Washer - Was 6501609 - A

17

6515619

O-RING

18

25K30020

O-RING 10 rod sealing

19

25K40100

O RING 10

20

200032

SEAL wiper

21

6504945

SEAL KIT Ref. 17 - 20
