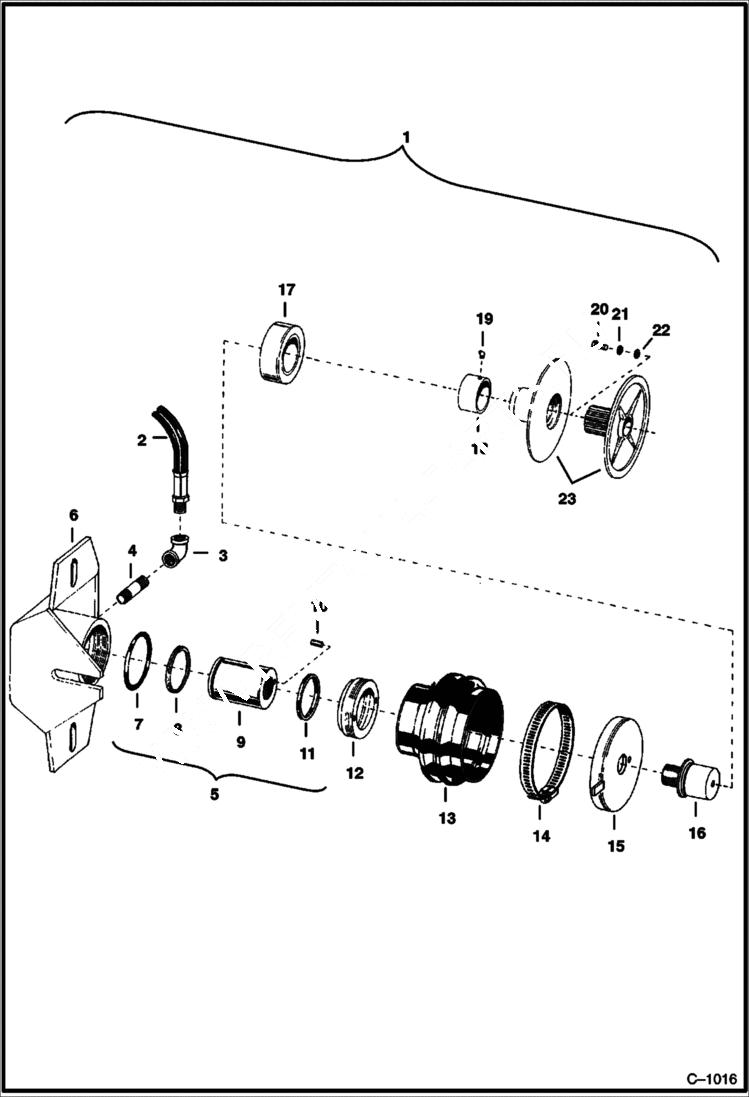

Запчасти Bobcat 600s VARIABLE SPEED DRIVE SHEAVE Wisconsin HYDRAULIC SYSTEM

1

DRIVE NLA - variable speed assy. - Order 6502035 Sheave Assy., 6501441 Hose & 6554939 Cover

2

HOSE NLA - 27'' (685,8 mm) long - Was 6501440 - A

2

6515160

HOSE 16'' (406,4 mm) long

3

26K204

FITTING

4

5K216

NIPPLE pipe

5

6504938

CYLINDER assy. - Ref. 6-9, 11 & 12

6

BRACKET NLA - Was 6504697 - A

7

25K40212

O RING 10

8

SNAP RING NLA - Was 6515901 - A

9

6516201

PISTON

10

DOWEL NLA - Was 219277B - A

11

6515900

SEAL block-vee

12

DRAW RING NLA - draw - Was 6502375 - A

13

6502281

BOOT neoprene

14

42H64

CLAMP hose - Was 522633 - A

15

CUP NLA - Was 6504827 - A

16

SHAFT NLA - stub - Was 6502398 - A

17

658927

BEARING thrust

18

CAP NLA - bearing retainer - Was 6503439 - A

18

CAP NLA - bearing retainer - Was 6502616 - A

19

11H25

FITTING10

20

17C624

BOLT 5

21

6E6

WASHER

22

RETAINER NLA - Was 6505851 - A

23

SHEAVE HALVES Order (1) 6502035 Sheave Assy. & 6502866 Washer - Was 6501609 - A

23

SHEAVE HALVES NLA - Order 6502035 Sheave Assy., 6502866 Washer & 6501441 Hose
