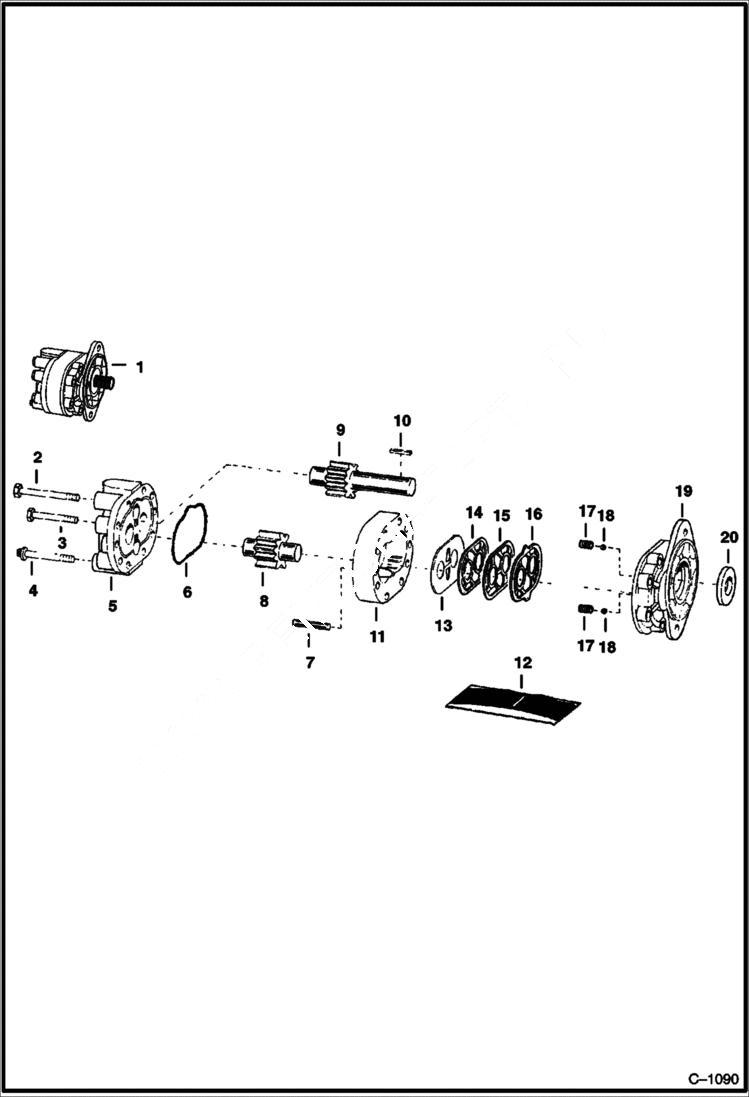

Запчасти Bobcat 600s HYDRAULIC PUMP Cessna No. 24304-LAJ HYDRAULIC SYSTEM

1

PUMP NLA - Was 6516246 - A

2

17C540

BOLT

3

17C536

BOLT

4

6632000

SCREW

5

COVER NLA - Back - W/Bushings - Was 991568 - A

6

25K20300

O RING 10

7

799146

DOWEL PIN

8

3486029

GEAR assembly

9

6516248

DRIVE GEAR assembly

10

KEY NLA - square - Was 7J002013B - A

11

BODY NLA

12

894215

SEAL KIT Ref. 6, 13 - 18 & 20

13

DIAPHRAGM NSS

14

GASKET NSS - phenolic

15

GASKET NSS - protector

16

SEAL NSS - molded ``V''

17

SPRING NSS - Compression

18

BALL NSS - steel

19

PLATE NLA - front

20

3490597

SEAL shaft
