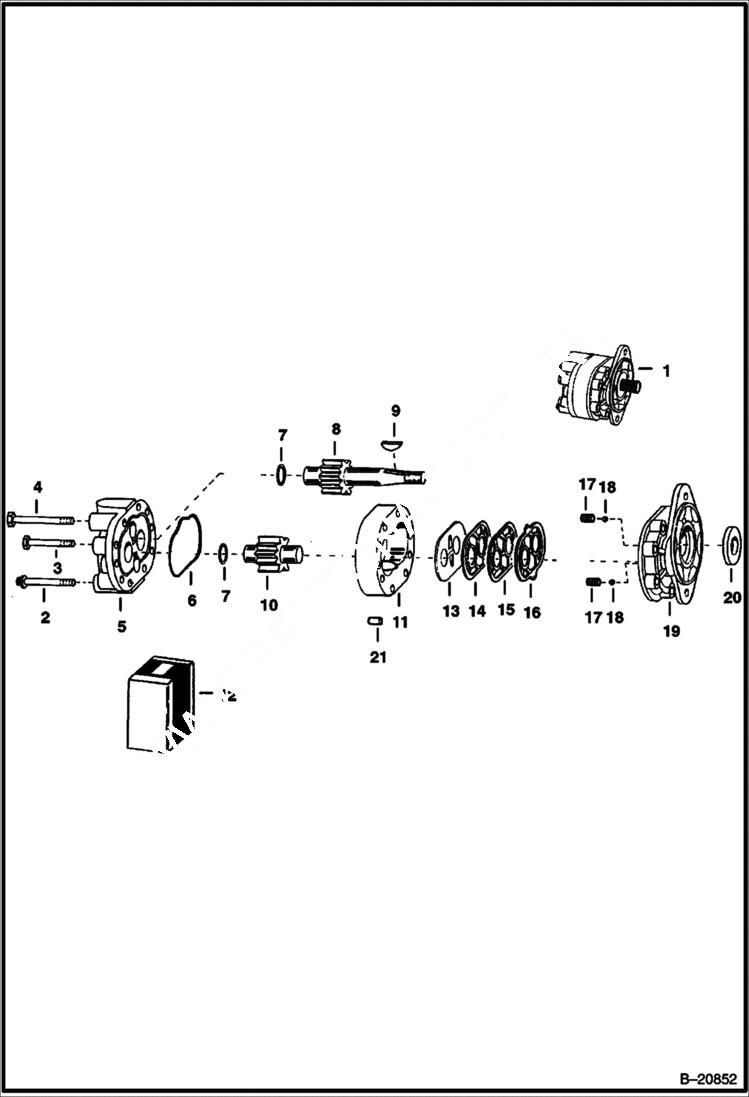

Запчасти Bobcat 600s HYDRAULIC PUMP Cessna No. 15-509-68 & 24-304 RAC HYDRAULIC SYSTEM

1

6510924

PUMP

2

6632000

SCREW

3

17C536

BOLT

4

17C540

BOLT

5

COVER NLA - W/Bushings - Was 991568 - A

6

25K20300

O RING 10

7

6516286

SNAP RING #15-509-68 Pump Only

8

DRIVE GEAR NLA - drive assy - Was 6510925 - A

9

16JM365

KEY woodruff

10

3486029

GEAR

11

BODY NLA

12

894215

SEAL KIT Ref. 6, 13 - 18 & 20

13

DIAPHRAGM NSS

14

GASKET NSS - phenolic

15

GASKET NSS - protector

16

SEAL NSS - molded ``V''

17

SPRING NSS - compression

18

BALL NSS - steel

19

PLATE NLA - front

20

3490597

SEAL shaft

21

799146

DOWEL PIN
