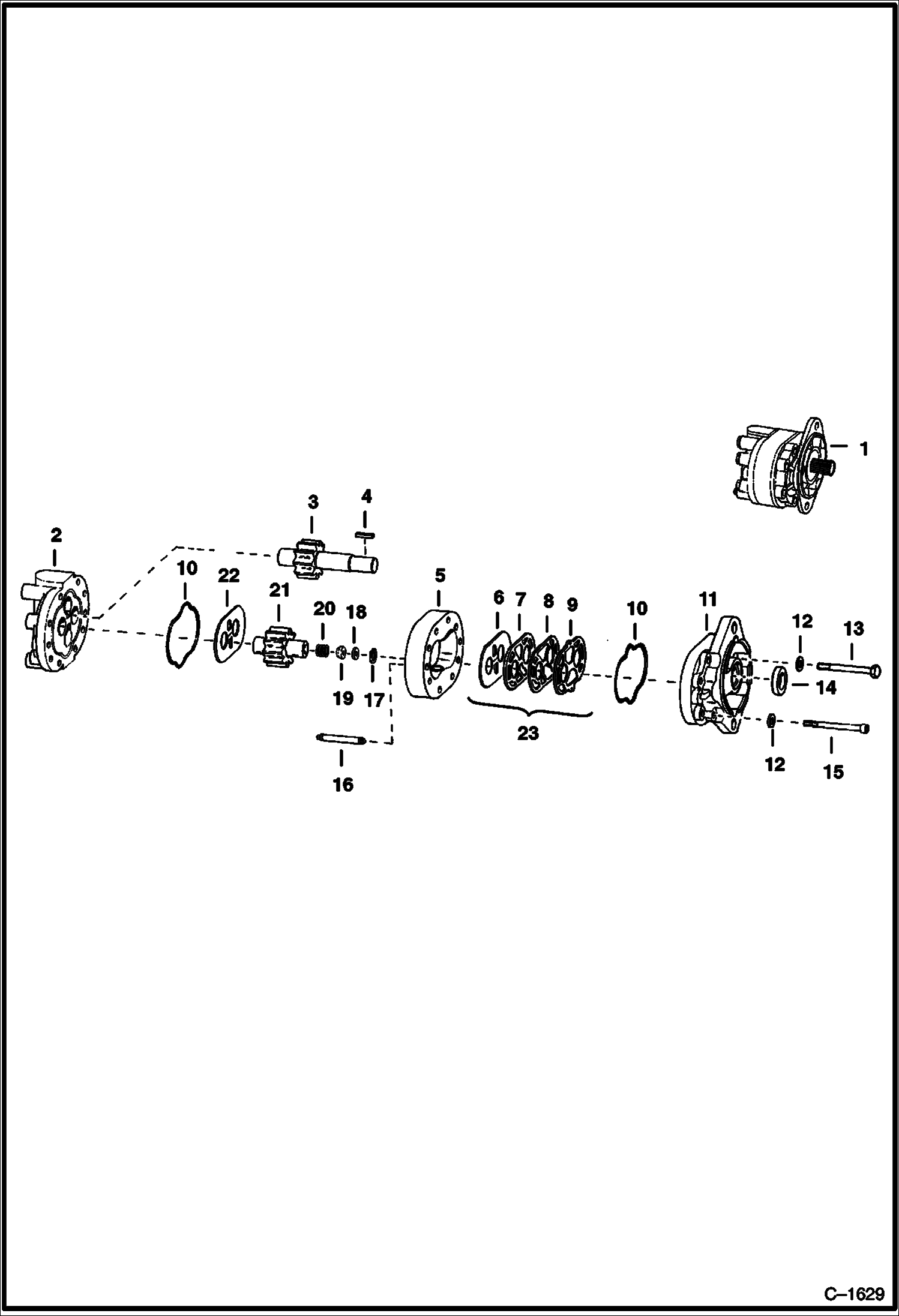

Запчасти Bobcat 600s HYDRAULIC PUMP Parker No. H39AD2G HYDRAULIC SYSTEM

1

6519278

PUMP, GEAR

2

6519971

COVER back

3

DRIVE GEAR NLA - assembly

4

7J2014

KEY square

5

BODY NLA

6

WEAR PLATE NSS

7

SHIELD NSS - heat

8

GASKET NSS

9

V-SEAL NSS

10

O-RING NSS

11

991992

COVER FT. front

12

WASHER NLA - Was 992213B - A

13

17C540

BOLT

14

SEAL NSS - shaft

15

93G540

CAPSCREW cap - Was 73G000540B - A

16

DOWEL PIN NLA

17

SNAP RING NLA

18

SEAT NLA - valve

19

VALVE NLA

20

SPRING NLA - valve

21

DRIVE GEAR NLA - assembly

22

6519976

PLATE thrust

23

992997

KIT Ref. 6 - 10 & 14
