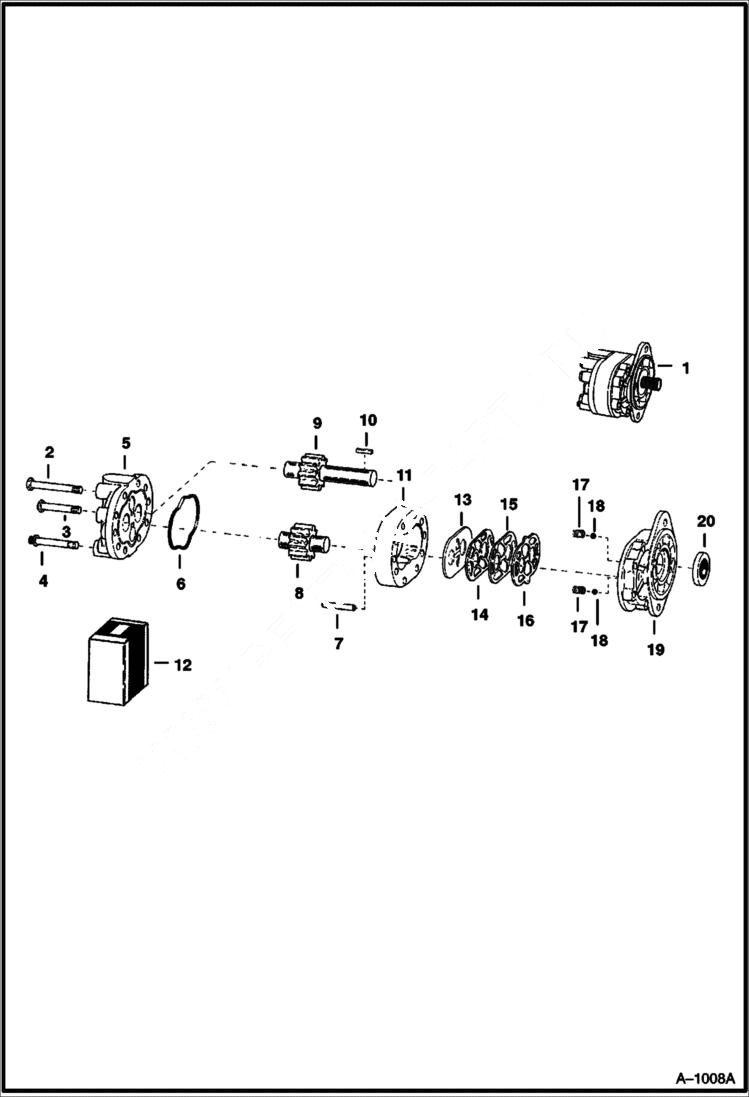

Запчасти Bobcat 600s HYDRAULIC PUMP Cessna No. 24387-OBAA & 24304-RAB HYDRAULIC SYSTEM

1

PUMP NLA - Order 6519278

2

17C540

BOLT

3

17C536

BOLT

4

6632000

SCREW

5

COVER NLA - W/Bushings - Was 991568 - A

6

25K20300

O RING 10

7

799146

DOWEL PIN

8

3486029

GEAR assembly

9

6516255

DRIVE GEAR assembly

10

KEY NLA - square - Was 6516253 - A

11

BODY NLA - center section

12

894215

SEAL KIT Ref. 6, 13 - 18 & 20

13

DIAPHRAGM NSS

14

GASKET NSS - phenolic

15

GASKET NSS - protector

16

SEAL NSS - molded ``V''

17

SPRING NSS - compression

18

BALL NSS - steel

19

PLATE NSS - front

20

3490597

SEAL shaft
