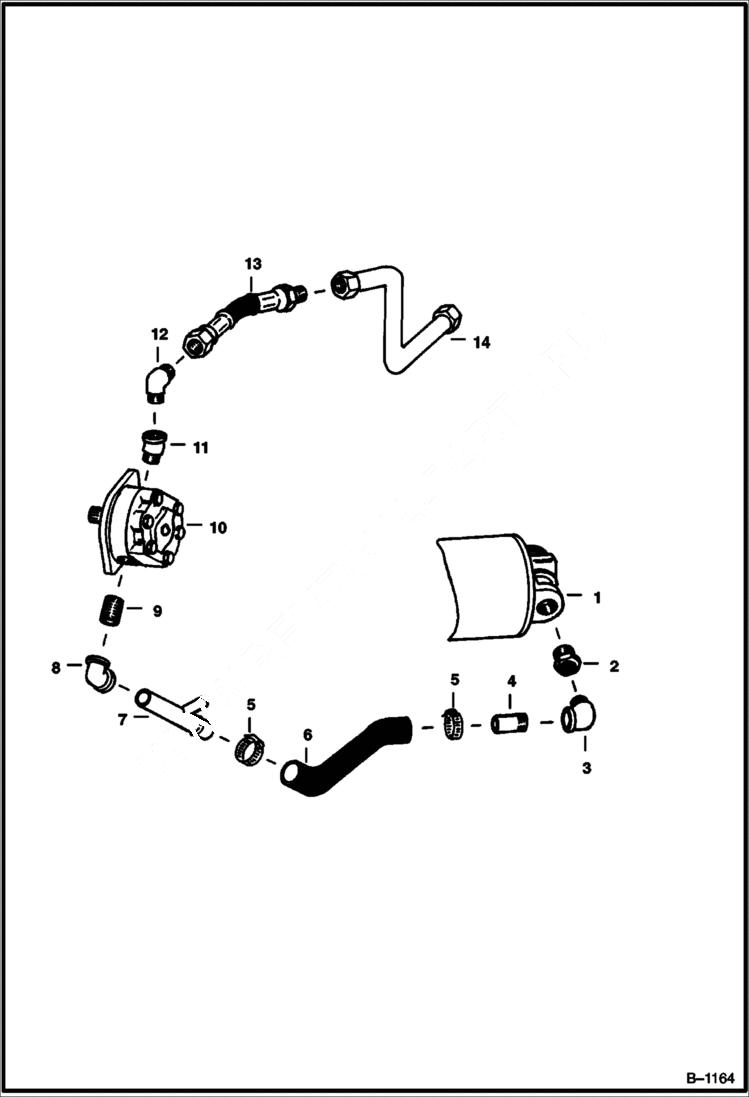

Запчасти Bobcat 600s HYDRAULIC PUMP CIRCUITRY Deutz - S/N 61848 & Below HYDRAULIC SYSTEM

1

FILTER See Illustration HYDRAULIC OIL FILTER/ B13878 NLA - hydrostatic - 10 micron - Was 6555477 - A

2

19F16

BUSHING

3

26F6

ELBOW

4

ADAPTER NLA - Was 6502416 - A

5

42H32

HS CLAMP5

6

HOSE NLA - Was 6505688 - A

7

6505690

TUBE

8

620560

ELBOW

9

5K611

NIPPLE

10

PUMP See Illustration HYDRAULIC PUMP/ A1008 See Illustration HYDRAULIC PUMP/ A1008A See Illustration HYDRAULIC PUMP/ C1629 See Illustration HYDRAULIC PUMP/ C1090 See Illustration HYDRAULIC PUMP/ A1074

11

25F5

ELBOW

12

83F8

ELBOW

13

6501054

HOSE

14

TUBE NLA - Was 6505689 - A
