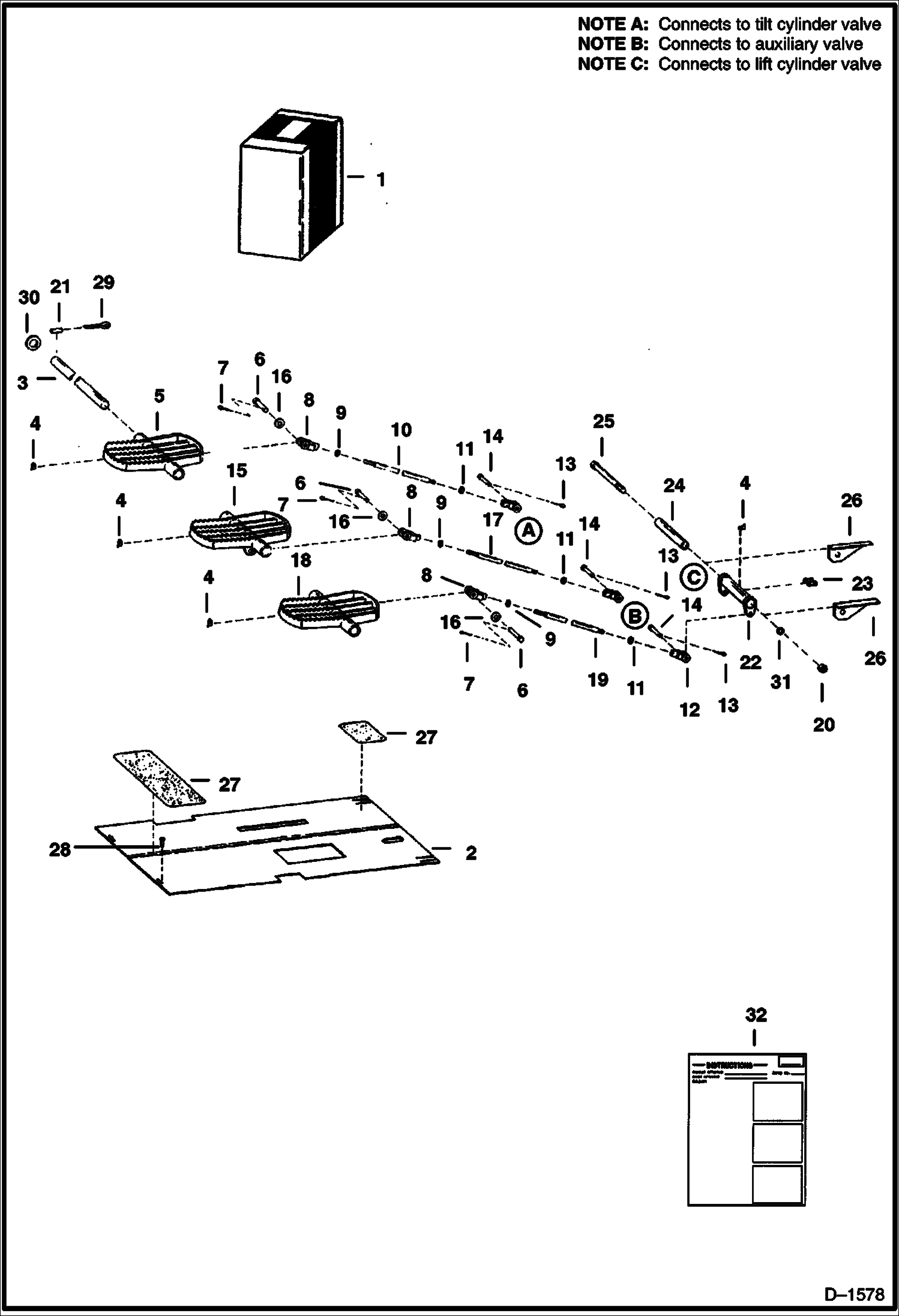

Запчасти Bobcat 600s THREE PEDAL KIT ACCESSORIES & OPTIONS

1

6564041

KIT Ref. 2 - 32

2

PLATE floor NLA - floor - Was 6559940

3

SHAFT NLA - Was 6502910 - A

4

12H15

FITTING, GREASE 5

5

6502913

PEDAL

6

663350

PIN

7

1F416

PIN

8

6508041

YOKE

9

8D6

NUT 5

10

ROD NLA - tilt - Was 6502986 - A

11

8D8

NUT

12

6515635

YOKE

13

1F316

PIN

14

6505103

PIN

15

PEDAL NLA - auxiliary - Was 6502912 - A

16

25E17

WASHER 5

17

ROD NLA - Was 6502374 - A

18

6502914

PEDAL

19

ROD NLA - Was 6502911 - A

20

61D8

NUT 5

21

SPACER NLA - Was 6564048 - A

22

BELLCRANK NLA - Was 6502981 - A

23

6515186

CONNECTOR

24

BUSHING NLA - Was 6502988 - A

25

17C8104

BOLT

26

SUPPORT NLA - Was 6502987 - A

27

6502459

SAFETY TREAD

27

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

28

84G3716

SCREW 5

29

1F632

PIN

30

25E29

WSHR

31

4E8

WASHER

32

6566250

INSTRUCTIONS
