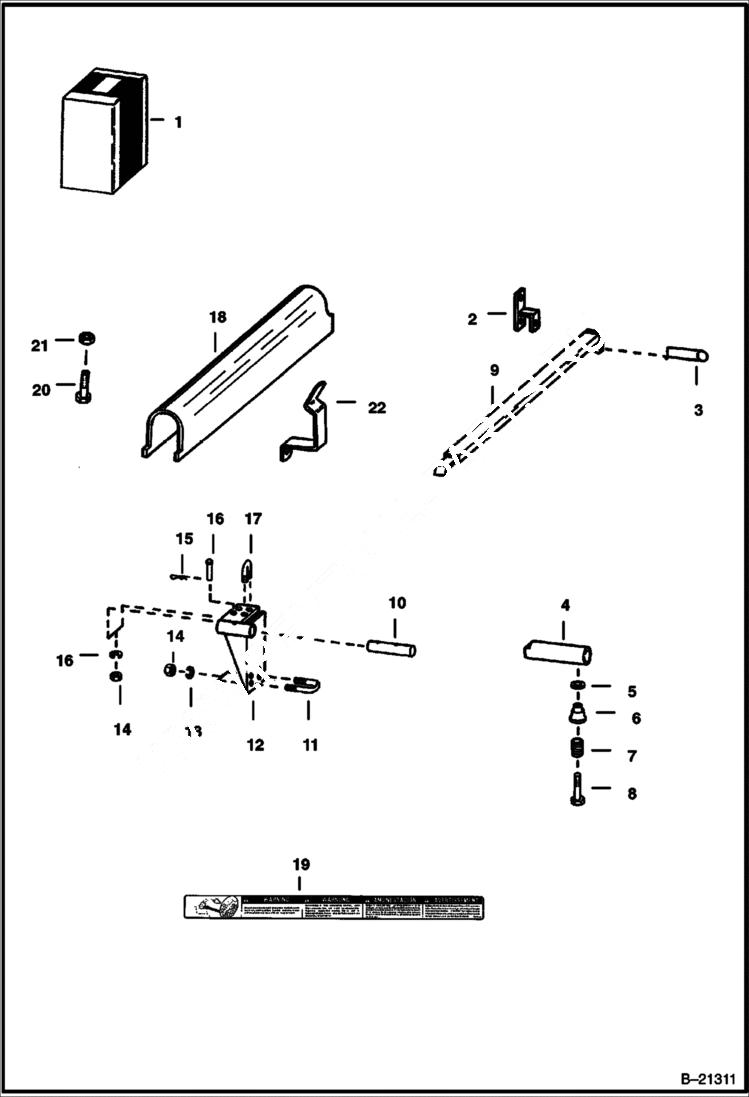

Запчасти Bobcat 600s LIFT ARM STOPS ACCESSORIES & OPTIONS

1

6504728

KIT lift arm stops - Ref. 2, 3 & 9 - Was NLA - D

1

6541963

KIT lift arm stops - Ref. 4 - 8 - Was NLA - D

1

KIT NLA - lift arm stops - Ref. 10 - 17 - Order Ref. 18, 20 - 22

1

KIT NLA - Was 6563336 - A

2

6504729

BRACKET

3

6515499

PIN

4

6541372

PIN

5

6541964

SPACER

6

RETAINER NLA - Was 6541515 - A

7

6541514

SPRING

8

17C652

BOLT

9

LOCK NLA - Order Ref. 18, 20-22

10

6541418

PIN

11

6541628

U-BOLT

12

6541415

BRACKET

13

4E8

WASHER

14

61D8

NUT 5

15

1318565

COTTER PIN

16

6541981

PIN

17

6505029

U-BOLT

18

6559550

STOP W/Ref. 19 - Was 6563449

19

6563423

DECAL

20

17C616

BOLT 5

21

85D6

NUT, 5

22

6563603

BRACKET
