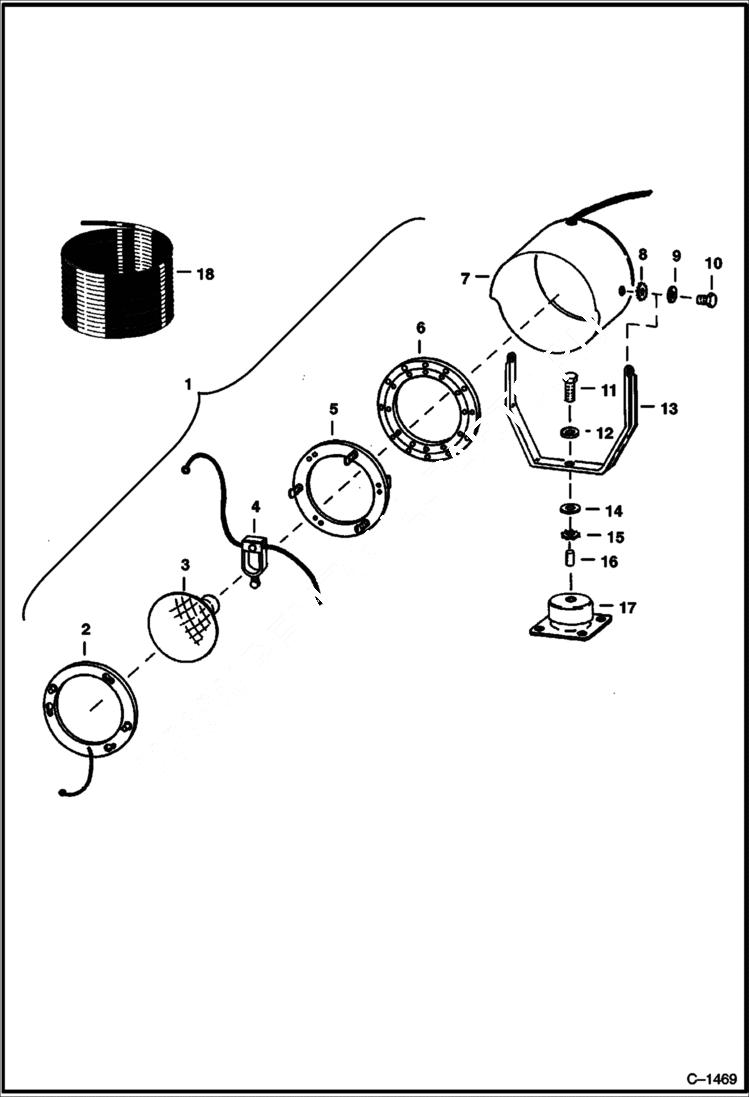

Запчасти Bobcat 600s 120 VOLT ELECTRICAL LIGHT Electric Bobcat ACCESSORIES & OPTIONS

1

LIGHT ASSY. NLA - W/Ref. 2 - 18 - Was 6517938 - A

2

PLATE NLA - retaining

3

LAMP NLA - 120 Volt, 150 W - Was 6517933 - A

4

CONNECTOR NLA - lamp

5

PLATE NLA - lamp mounting

6

DIAPHRAGM NLA

7

HOUSING NLA

8

WASHER NLA - Was 10E000007B - A

9

9E6

LOCKWSHR

10

17C610

BOLT

11

17C820

BOLT

12

9E8

WASHER

13

YOKE NLA

14

25E21

WASHER 5 Was 664425 - A

15

WASHER Was 10E000008B - A

16

6517927

BUSHING

17

BASE NLA - mounting

18

WIRE NLA - insulated
