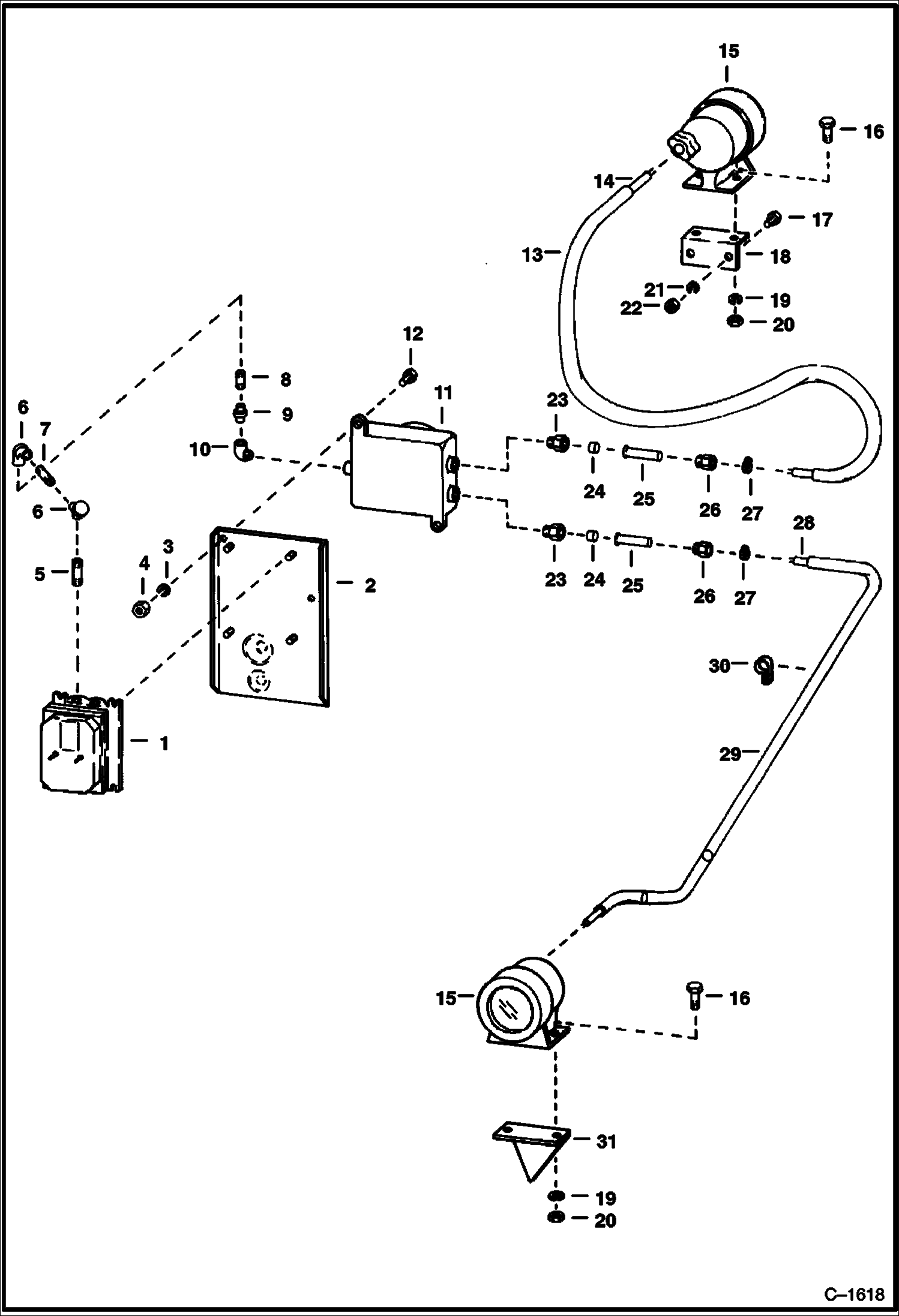

Запчасти Bobcat 600s ELECTRICAL LIGHT SYSTEM Explosion Proof Electric Bobcat - 120 Volt ACCESSORIES & OPTIONS

1

STARTER BOX NLA

2

PLATE NLA - mounting

3

4E6

WASHER

4

61D6

NUT 5

5

NIPPLE NLA

6

1682858

ELBOW

7

NIPPLE NLA - Was 5K000636B - A

8

NIPPLE NLA - Was 5K000628B - A

9

1682868

UNION

10

6515149

ELBOW

11

6508957

TRANSFORMER light

12

17C624

BOLT 5

13

HOSE NLA

14

CABLE NLA

15

6516706

LIGHT

15

6518592

FLOOD LAMP 120 Volt

15

CAP NLA - headlight - W/Lens

16

SCREW NLA - Was 17C000928B - A

17

17C824

BOLT 5

18

6508959

BRACKET mounting

19

4E9

WASHER

20

NUT NLA - Was 61D000009B - A

21

4E8

WASHER

22

61D8

NUT 5

23

6508956

ADAPTER

24

PACKING NLA - asbestos

25

HOLDER NLA - cable

26

NUT NLA

27

CLAMP NLA

28

CABLE NLA

29

HOSE NLA

30

6516695

CLIP

31

BRACKET NLA - mounting
