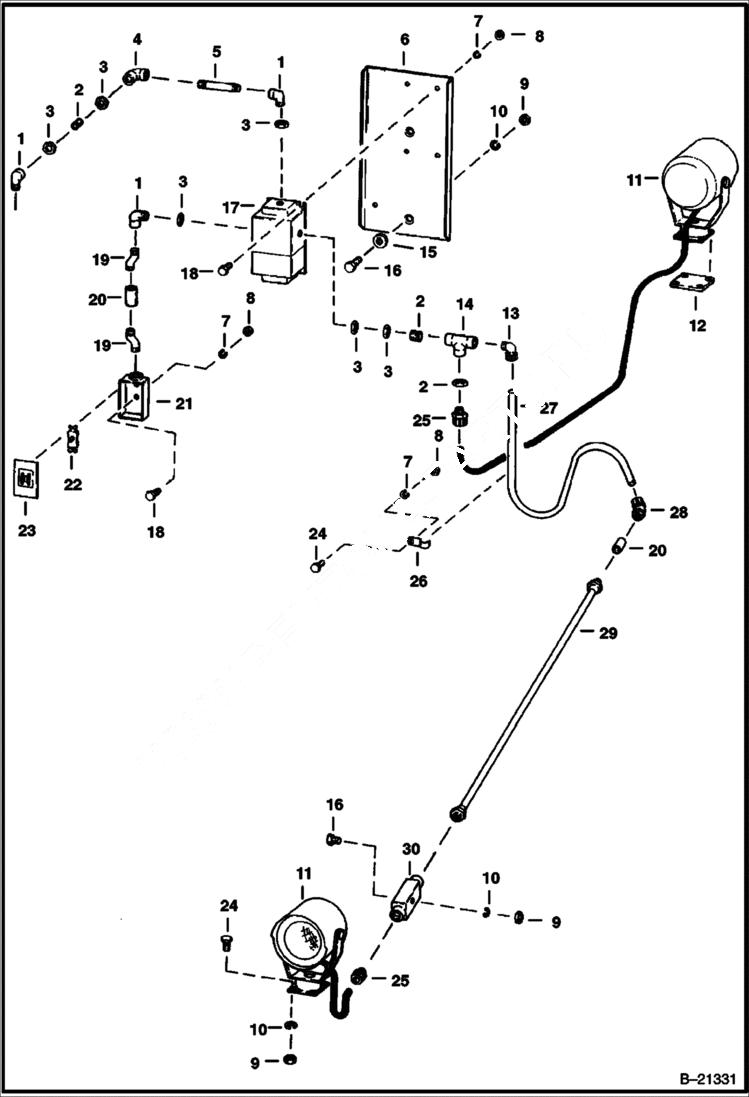

Запчасти Bobcat 600s ELECTRICAL LIGHT SYSTEM Electric Bobcat - 120 Volt ACCESSORIES & OPTIONS

1

ELBOW NLA - Was 2401263 - A

2

5K409

NIPPLE

3

610983

NUT

4

6515150

ELBOW

5

NIPPLE NLA

6

6504829

PLATE mounting

7

4E4

WASHER

8

61D4

NUT 5

9

61D6

NUT 5

10

4E6

WASHER

11

LIGHT ASSY. See Illustration 120 VOLT ELECTRICAL LIGHT/ C1469 NLA - 120 VOLTS - WAS 6517938 - A

12

PLATE NLA - mounting

13

ELBOW NLA

14

TEE NLA - Was 18F000004B - A

15

743787

WASHER

16

17C616

BOLT 5

17

6518276

TRANSFORMER 500 KVA

18

17C412

BOLT 5

19

6518394

NIPPLE

20

COUPLING NLA - Was 75F000004B - A

21

6518402

SWITCH BOX

22

6508532

SWITCH

23

6518403

COVER switch box

24

SCREW NLA - Was 11C000612B - A

25

601280

CONNECTOR

26

710533

CLAMP

27

CONDUIT NLA

28

ELBOW NLA

29

TUBELINE NLA

30

JUNCTION BOX NLA
