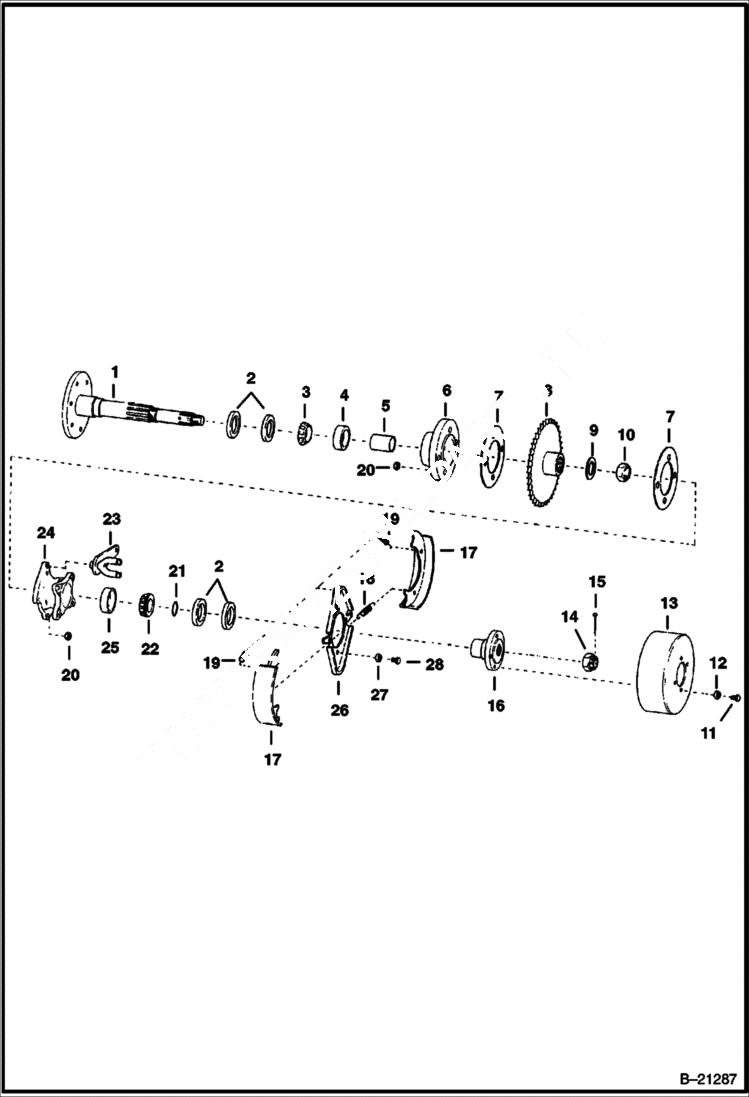

Запчасти Bobcat 600s AXLE & BRAKE ASSEMBLY ACCESSORIES & OPTIONS

1

6542555

AXLE front

2

6515000

SEAL

2

6514043

SEAL

3

6648774

BEARING Outside Hub - Was 743778B - A

4

6648776

RACE Outside Hub - Was 743777B - A

5

SPACER NLA - Was 6502288 - A

6

6502533

HUB outside

7

6502209

GASKET

8

6504794

SPROCKET

9

6503242

WASHER

10

NUT NLA - Was 6503241 - A

11

17C712

BOLT

12

6E7

WASHER

13

6518098

DRUM brake

14

4D18

NUT castle

15

1F628

PIN

16

HUB NLA - brake drum mounting - Was 6503238 - A

17

6516195

KIT brake shoe - 2 Sets

18

6518095

SPRING holding

19

6518094

SPRING return

20

81D8

NUT

21

980678

O'RING

21

25K40112

O RING 10

22

1318538

BEARING

22

6519412

BEARING

23

CAM NLA - R.H. - Was 6546212 - A

23

6546211

CAM L.H.

23

6501439

CAM

24

6503235

HUB

24

HUB NLA - Was 6542728 - A

25

1318539

BEARING

25

6519413

RACE

26

6516196

PLATE

27

6E8

WASHER

28

17C820

BOLT
