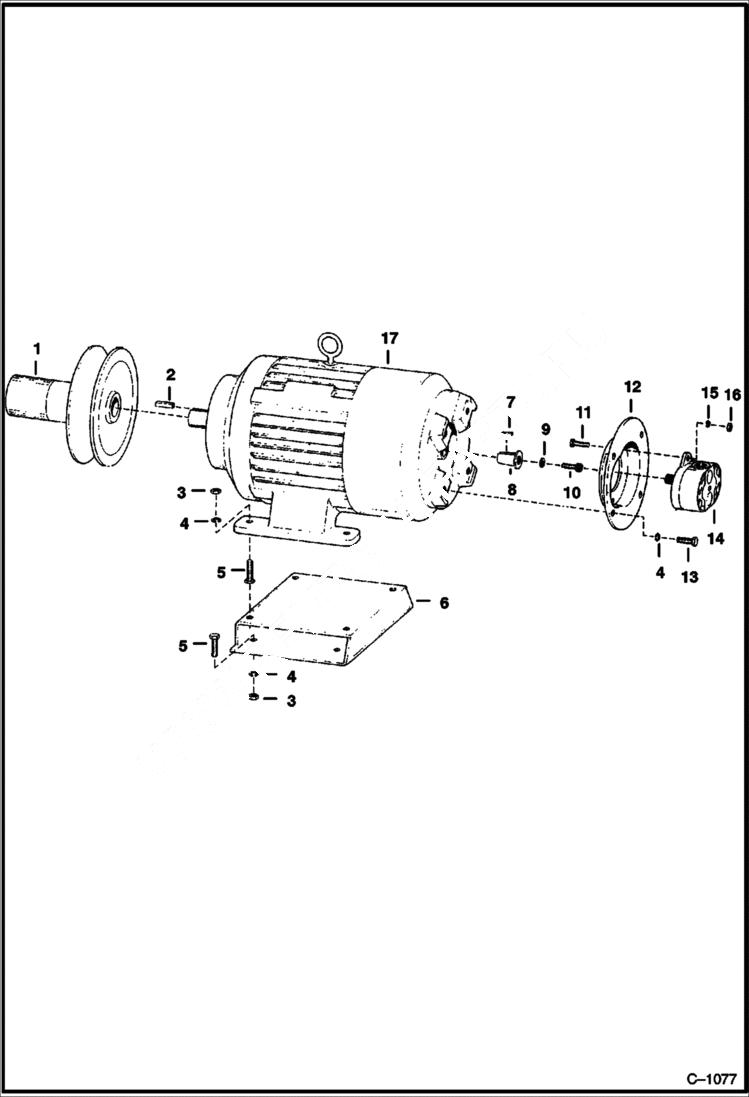

Запчасти Bobcat 600s 15 H.P. (CONTINUOUS DUTY) MOTOR & ATTACHING PARTS S/N 60000 - 70131 ELECTRICAL SYSTEM

1

DRIVE See Illustration VARIABLE SPEED DRIVE SHEAVE/ C1598 See Illustration FIXED DRIVE SHEAVE/ B1358 See Illustration VARIABLE SPEED DRIVE SHEAVE/ B21304 See Illustration VARIABLE SPEED DRIVE SHEAVE/

2

7J5200

KEY Was 7J005114B - A

3

61D8

NUT 5

4

4E8

WASHER

5

17C824

BOLT 5

6

6509700

ADAPTER

7

7J1012

KEY

8

ADAPTER NLA - Was 6506445 - A

9

6514509

WASHER

10

74G516

BOLT

11

17C620

BOLT

12

6506446

PLATE

13

17C820

BOLT

14

PUMP See Illustration HYDRAULIC PUMP/ C1042 See Illustration HYDRAULIC PUMP/ C1042A See Illustration HYDRAULIC PUMP/ B21193 See Illustration HYDRAULIC PUMP/ A1008 See Illustration HYDRAULIC PUMP/ B212

15

4E6

WASHER

16

61D6

NUT 5

17

MOTOR See Illustration ELECTRIC MOTORS/ C1422
