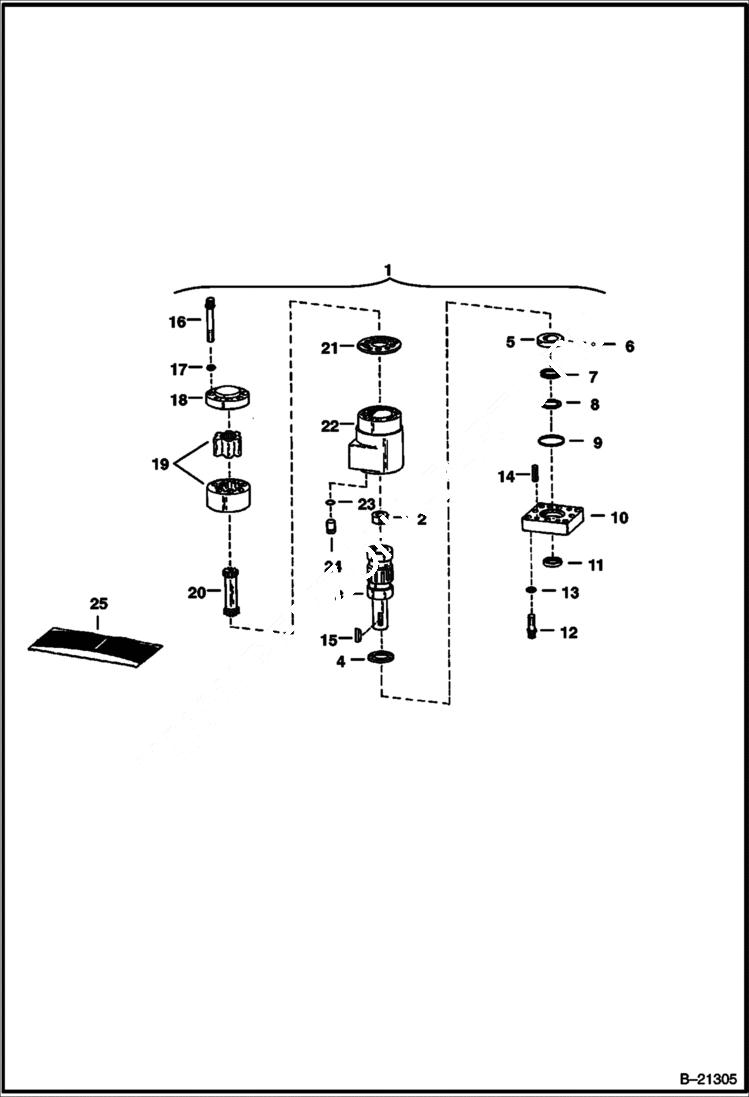

Запчасти Bobcat 600s HYDRAULIC MOTOR B.O.M. Electric HYDRAULIC SYSTEM

1

6517490

MOTOR hydraulic - Ref. 2 - 24

2

6518097

SPACER gerotor drive

3

6519141

SHAFT output - W/Sleeve

4

SEAL NSS

5

6519142

BUSHING

6

6519144

BALL

7

6519150

BEARING thrust

8

SEAL NSS - quad ring

9

WASHER NSS - teflon

10

6653266

FLANGE mounting - Was 993021B - A

11

SEAL NSS - oil

12

SCREW NLA - cap - Was 93G000514B - A

13

6E5

WASHER

14

302602

ROLL PIN

15

6J808

KEY, WOODRUFF

16

6519147

SCREW cap

17

6517947

WASHER seal

18

993537

CAP end

19

6519145

GEROTOR SET

20

6519146

SHAFT gerotor

21

1567084

PLATE spacer

22

HOUSING NLA

23

O-RING NSS

24

6519143

KIT ball check

25

6517948

SEAL KIT Ref. 4, 8, 9, 11, 17 & 23
