Запчасти Bobcat 600s VARIABLE SPEED DRIVE SHEAVE Tapered Shaft HYDRAULIC SYSTEM

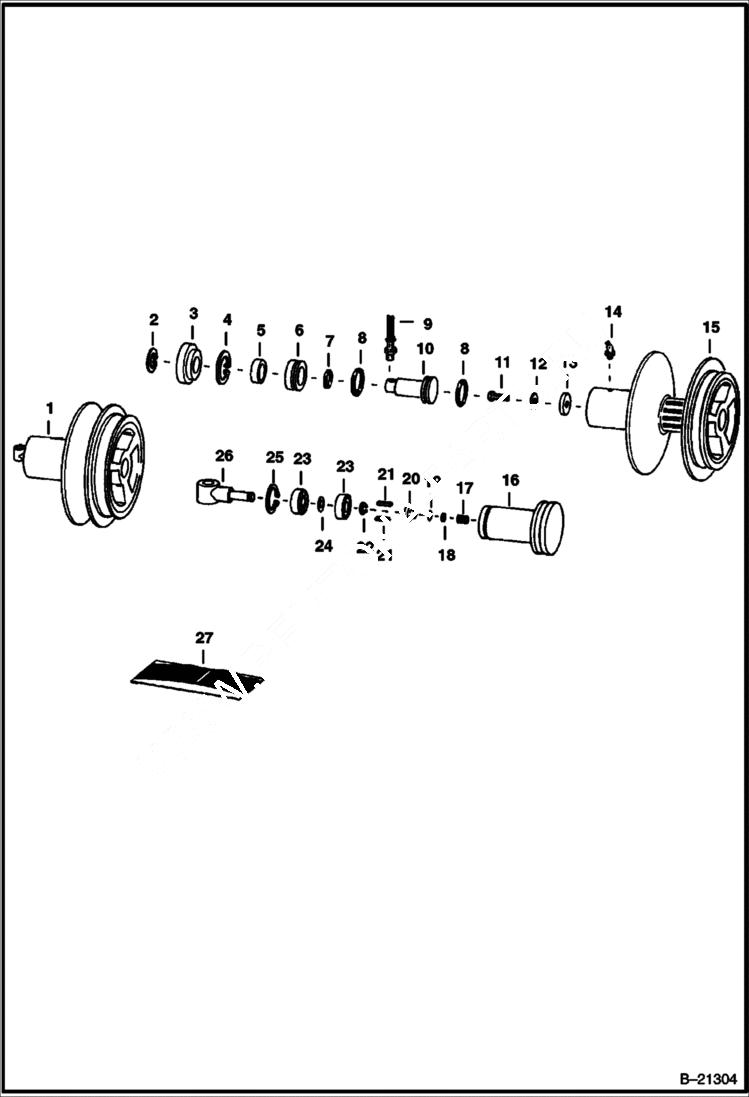

Схема запчастей Bobcat 600s - VARIABLE SPEED DRIVE SHEAVE Tapered Shaft HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

SHEAVE ASSY. NLA - Was 6502004 - A

2

6515571

SNAP RING

3

6504428

CAP end

4

658524

RING

5

6515886

SEAL wiper

6

6504427

GLAND

7

58K216

O RING 10

8

58K325

O RING 10

9

6501441

HOSE

10

6515580

PISTON roto-swivel - Ref. 16 - 26

11

17C624

BOLT 5

12

6E6

WASHER shakeproof

13

6502866

WASHER flat

14

11H25

FITTING10

15

SHEAVE NLA - Was 6502003 - A

16

6516303

SHAFT variable speed

17

6516302

SPRING coil

18

888670

GUIDE seal

19

25K20005

O RING 10

20

6516301

SEAL floating

21

301923

ROLL PIN key

22

1319170

SNAP RING

23

6516312

BEARING ball

24

896264

SHIM bearing

25

1310052

RETAINR

26

6516304

SWIVEL

27

6505780

KIT rebuilding - Ref. 17 - 20 & 22 - 26

27

6561717

SEAL KIT Ref. 5, 7 & 8

Выбрано товаров: 28
