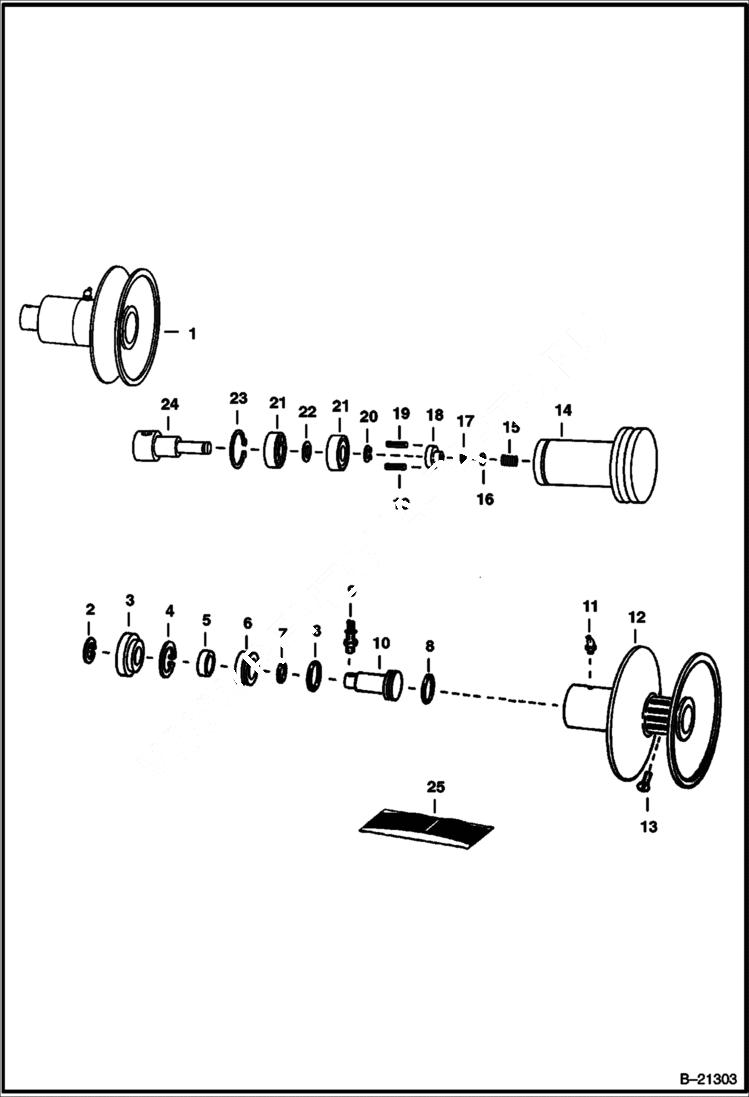

Запчасти Bobcat 600s VARIABLE SPEED DRIVE SHEAVE Straight Shaft HYDRAULIC SYSTEM

1

6554946

SHEAVE ASSY.

2

6515571

SNAP RING

3

6504428

CAP

4

658524

RING

5

6515886

SEAL wiper

6

6504427

GLAND cylinder

7

58K216

O RING 10

8

58K325

O RING 10

9

6501441

HOSE

10

6515580

PISTON roto-swivel - Ref. 17 - 24

11

11H25

FITTING10

12

6554940

SHEAVE Matched Halves

13

15G606

SCREW

14

6516303

SHAFT

15

6516302

SPRING

16

888670

GUIDE seal

17

25K20005

O RING 10

18

6516301

SEAL floating

19

301923

ROLL PIN key

20

1319170

SNAP RING

21

6516312

BEARING

22

896264

SHIM

23

1310052

RETAINR

24

6516304

SWIVEL

25

6505780

KIT rebuilding - Ref. 15-18 & 20-24

25

6661441

SEAL KIT Ref. 5, 7 & 8 - Was 6561717 - A
