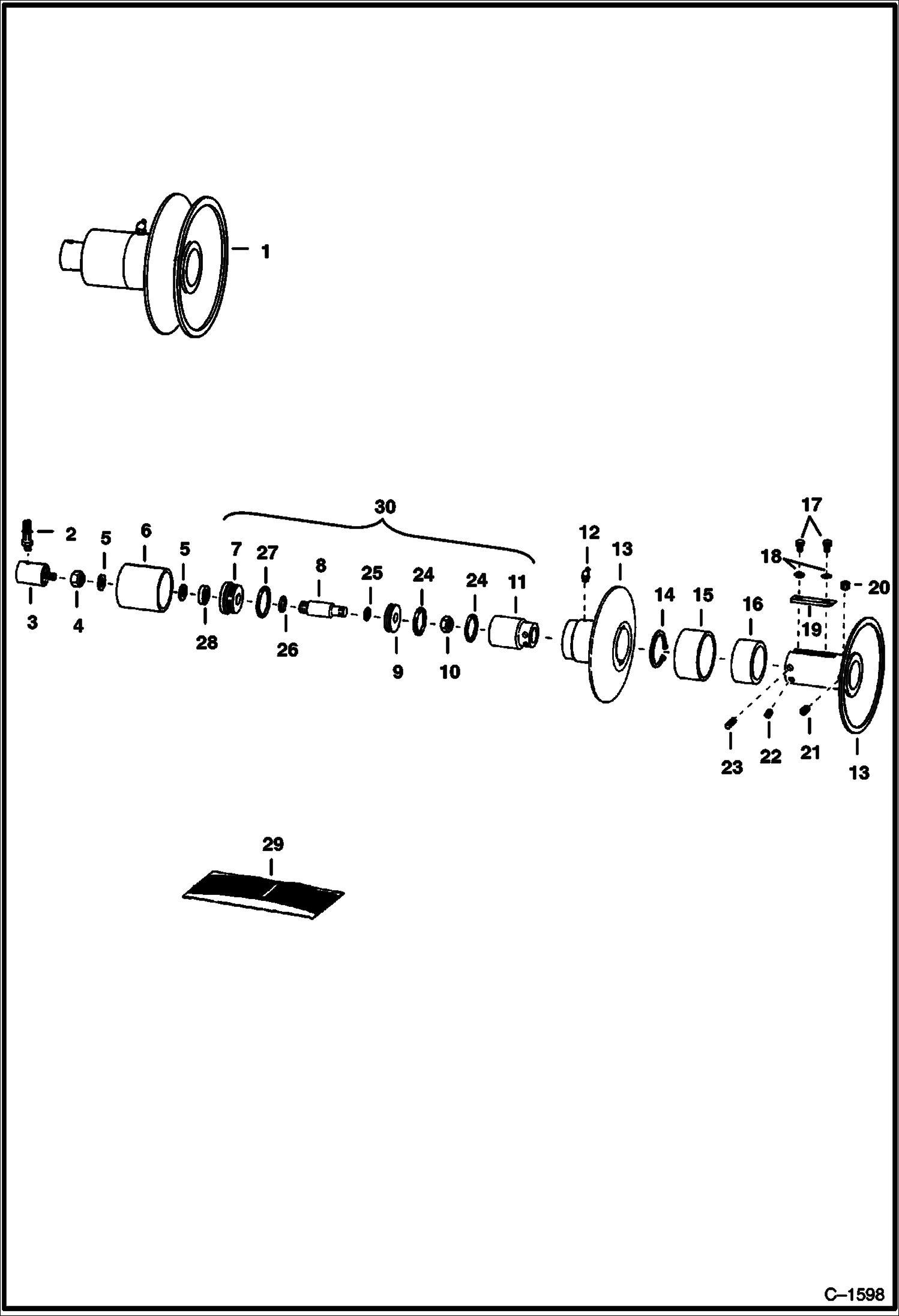

Запчасти Bobcat 600s VARIABLE SPEED DRIVE SHEAVE Tapered Shaft HYDRAULIC SYSTEM

1

SHEAVE NLA - Order 6502035 & 6501441

2

6505680

HOSE

3

COUPLING See Illustration VARIABLE SPEED SWIVEL COUPLING/ A1090 See Illustration VARIABLE SPEED SWIVEL COUPLING/ A1345

4

8D12

NUT

5

WASHER NLA - Was 6502562

6

CAP NLA - Was 6504681 - A

7

GLAND NLA - Order Ref. 1

8

6516216

ROD

9

PISTON NLA - Order Ref. 1

10

8D10

NUT

11

BARREL NLA - Order Ref. 1

12

11H25

FITTING10

13

SHEAVE NLA - halves - Order Ref. 1

14

SNAP RING NLA - Was 1318435 - A

15

COLLAR NLA - idler - Was 6505825 - A

16

1318320

BUSHING

17

21G1008

SCREW

18

12E10

WASHER

19

8J5200

KEY

20

15G604

SCREW

21

15G606

SCREW

22

SCREW NLA - Was 6505111 - A

23

PIN NLA - Was 654632 - A

24

25K60120

O RING 10

25

25K30020

O-RING 10

26

25K40100

O RING 10

27

25K40200

O RING 10

28

200032

SEAL wiper

29

6661301

SEAL KIT Ref. 24 - 28 - Was 6504961 - A

30

CYLINDER NLA - Ref. 7 - 11 & 24 - 28
