Запчасти Bobcat 600s VARIABLE SPEED DRIVE CIRCUITRY HYDRAULIC SYSTEM

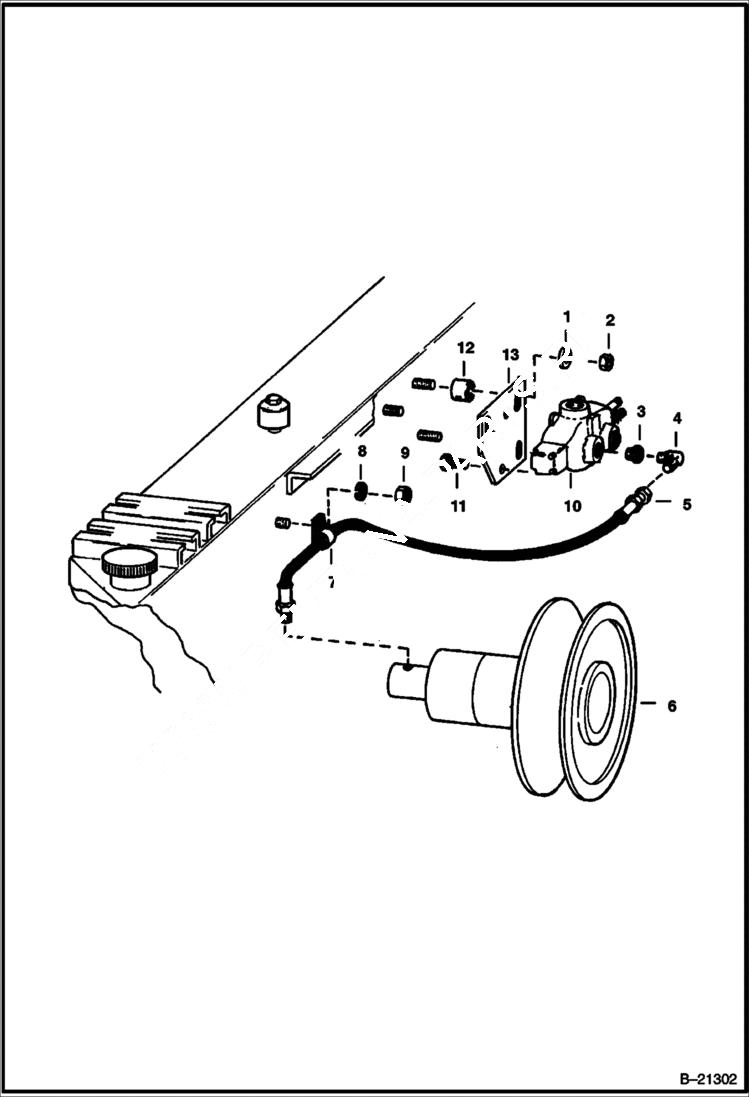

Схема запчастей Bobcat 600s - VARIABLE SPEED DRIVE CIRCUITRY HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

25E17

WASHER 5 flat

2

81D6

NUT

3

19F5

BSHG reducing

4

ELBOW NLA - Was 731745 - A

5

6501441

HOSE

6

SHEAVE See Illustration VARIABLE SPEED DRIVE SHEAVE/ C1598 See Illustration FIXED DRIVE SHEAVE/ B1358 See Illustration VARIABLE SPEED DRIVE SHEAVE/ B21304 See Illustration VARIABLE SPEED DRIVE SHEAVE/

7

30H34

CLAMP

8

4E4

WASHER

9

61D4

NUT 5

10

6504944

VALVE See Illustration VARIABLE SPEED VALVE/ C1053

11

17C608

BOLT

12

6502353

SPACER

13

PLATE NLA - Was 6505676 - A

Выбрано товаров: 13
