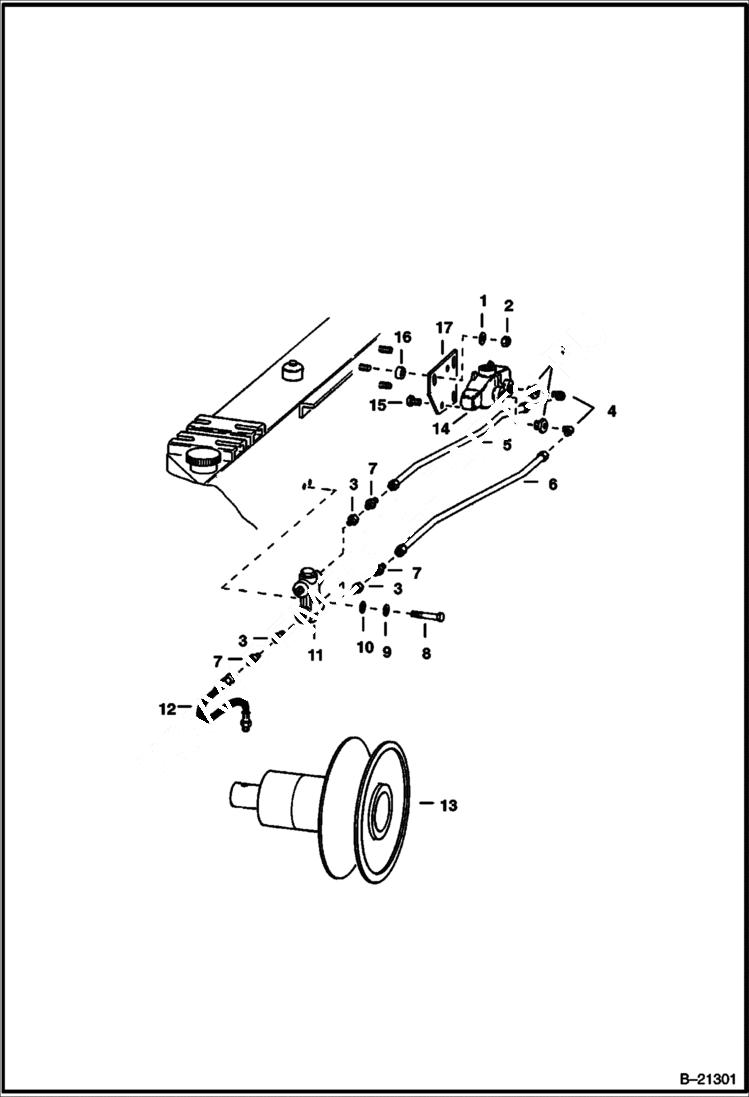

Запчасти Bobcat 600s VARIABLE SPEED DRIVE CIRCUITRY Used W/Speed Check Valve HYDRAULIC SYSTEM

1

25E17

WASHER 5 flat

2

81D6

NUT

3

19F5

BSHG

4

ELBOW NLA - Was 6560020 - A

5

TUBE NLA - Was 6505682 - A

6

TUBE NLA - Was 6505681 - A

7

774433

ADAPTOR

8

17C536

BOLT

9

4E5

WASHER

10

25E15

WASHER flat

11

VALVE See Illustration VARIABLE SPEED CHECK VALVE/ C1054 NLA - LOCK

12

6515161

HOSE

12

6515160

HOSE

13

SHEAVE See Illustration VARIABLE SPEED DRIVE SHEAVE/ C1598 See Illustration FIXED DRIVE SHEAVE/ B1358 See Illustration VARIABLE SPEED DRIVE SHEAVE/ B21304 See Illustration VARIABLE SPEED DRIVE SHEAVE/

14

VALVE See Illustration VARIABLE SPEED VALVE/ B21197 NLA

15

17C608

BOLT

16

6502353

SPACER

17

PLATE NLA - Was 6505676 - A
