Запчасти Bobcat 600s VARIABLE SPEED DRIVE CIRCUITRY S/N 41339 & Below HYDRAULIC SYSTEM

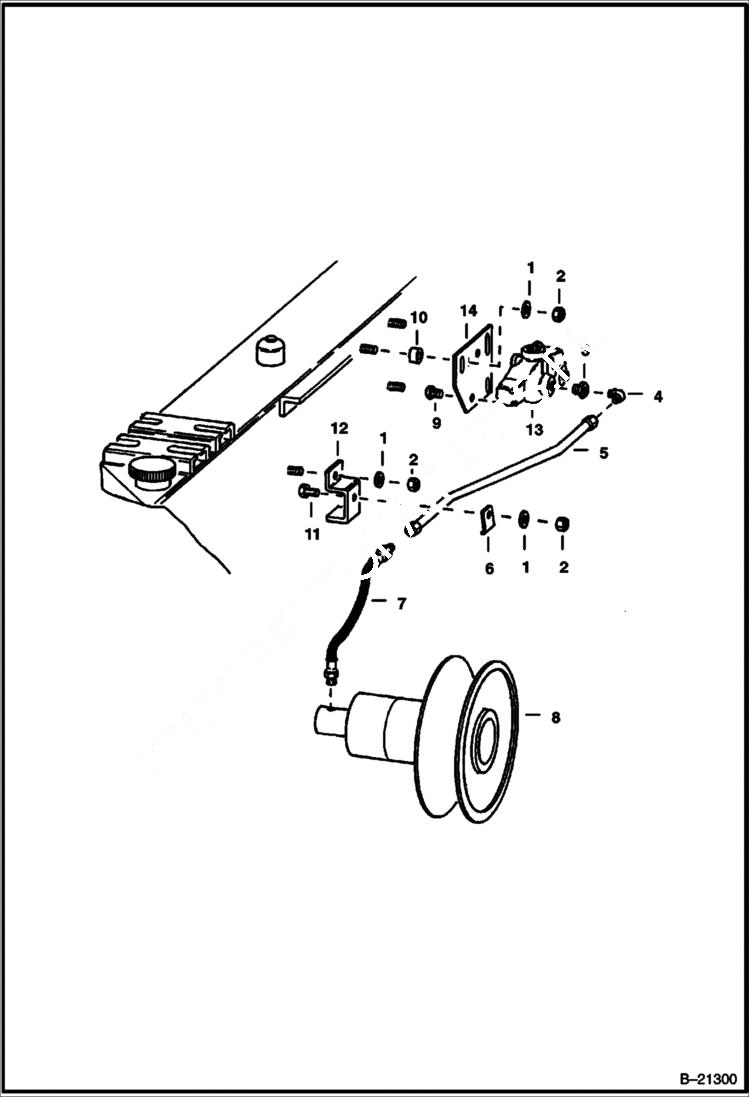

Схема запчастей Bobcat 600s - VARIABLE SPEED DRIVE CIRCUITRY S/N 41339 & Below HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

25E17

WASHER 5 flat

2

81D6

NUT

3

19F5

BSHG

4

ELBOW NLA - Was 6560020 - A

5

6504936

TUBE

6

6502449

CLAMP

7

6505680

HOSE

8

SHEAVE See Illustration VARIABLE SPEED DRIVE SHEAVE/ C1598 See Illustration FIXED DRIVE SHEAVE/ B1358 See Illustration VARIABLE SPEED DRIVE SHEAVE/ B21304 See Illustration VARIABLE SPEED DRIVE SHEAVE/

9

17C608

BOLT

10

6502353

SPACER

11

17C612

BOLT 5

12

6505678

BRACKET

13

VALVE See Illustration VARIABLE SPEED VALVE/ B21196 NLA

14

PLATE NLA - Was 6505676 - A

Выбрано товаров: 14
