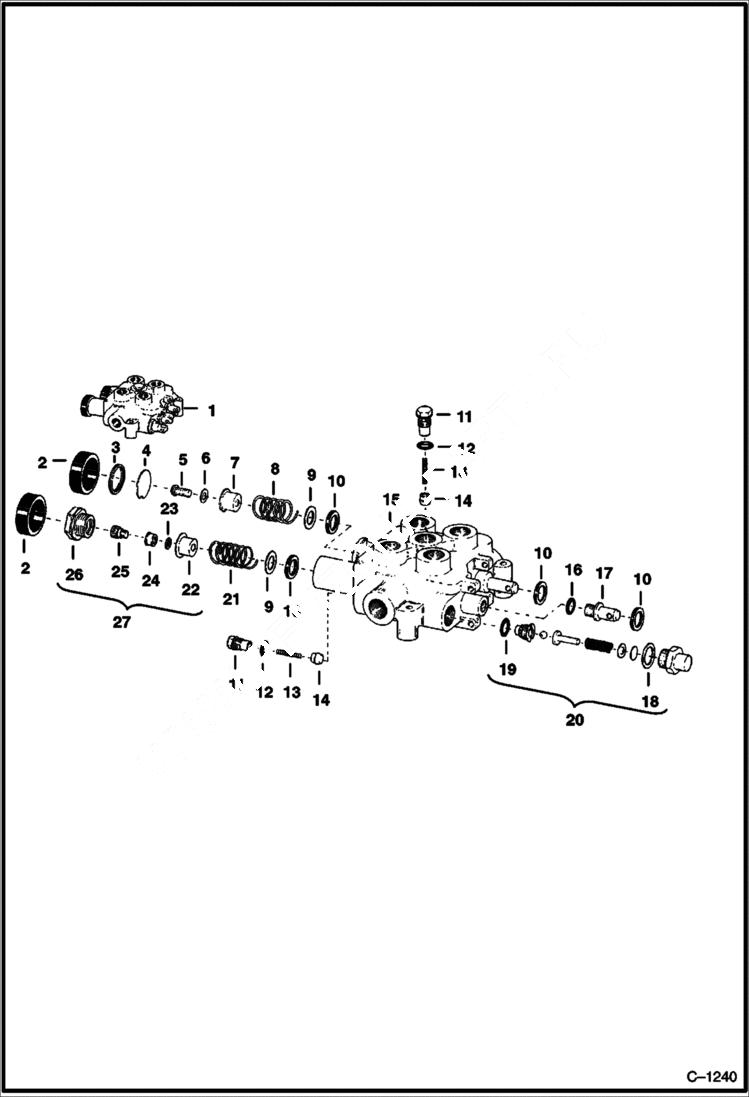

Запчасти Bobcat 600s LIFT CYLINDER & AUXILIARY VALVE HYDRAULIC SYSTEM

1

6504941

VALVE Ref. 2 - 25

2

6515030

CAP

3

1318338

RING

4

6515015

DISC stop

5

89G408

BOLT

6

6515228

WASHER shakeproof

7

6515014

COLLAR spring

8

6515016

SPRING centering

9

6515239

WASHER stop

10

6515313

SEAL spool

11

6515233

PLUG Check Assy (W/ O-Ring, Poppet & Spring

12

1318339

ORING

13

6515082

SPRING

14

6515078

POPPET check

15

HOUSING NLA

16

79K6

O RING 10

17

6515084

CONNECTOR spool

18

6515019

GASKET

19

79K8

O RING 10

20

6516245

VALVE relief assy.

21

6515064

SPRING

22

6515039

COLLAR

23

WASHER NSS

24

PLUNGER NSS - detent

25

SCREW NSS - cap

26

6516243

DETENT float

27

6516242

REPAIR KIT Ref. 23 - 26
