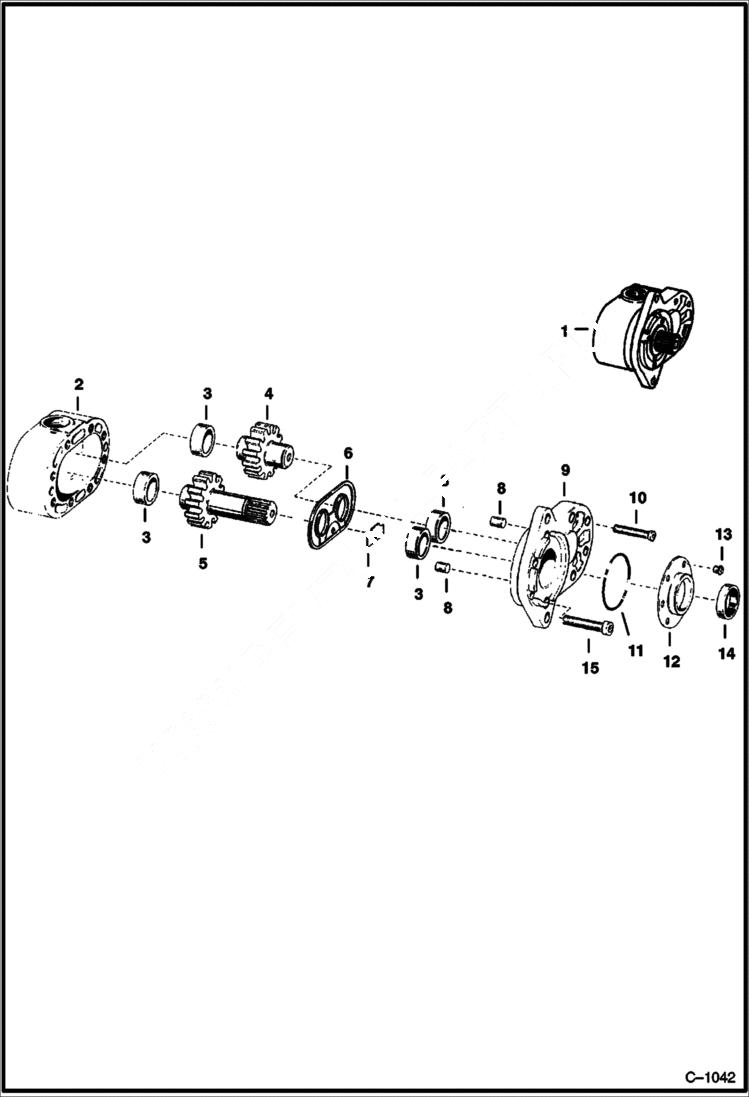

Запчасти Bobcat 600s HYDRAULIC PUMP Websrer #077YC053 - LF HYDRAULIC SYSTEM

1

6511860

PUMP

2

COVER NLA

3

654386

BEARING needle

4

6516270

SHAFT idler & gear

5

SHAFT NLA - drive & gear - Order Ref. 1

6

PLATE NLA - wear & seal

7

6516273

BLOCK anti-extrusion

8

6515115

DOWEL PIN

9

BODY NLA

10

93G520

SCREW

11

25K30130

O RING 10

12

6515437

RETAINER W/Ref. 14

13

SCREW NLA - Was 85G001005B - A

14

1318237

SEAL oil

15

93G624

SCREW Was 71G000624B - A
