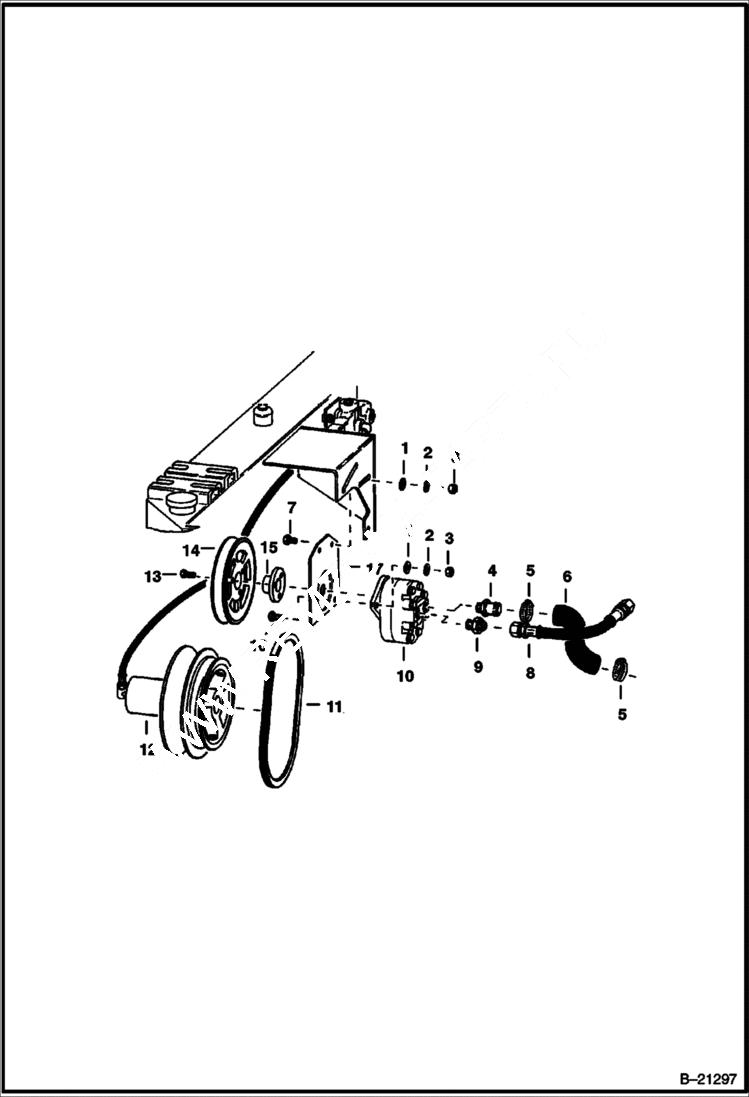

Запчасти Bobcat 600s HYDRAULIC PUMP CIRCUITRY B.O.M. Electric HYDRAULIC SYSTEM

1

784469

WASHER

2

4E6

WASHER

3

61D6

NUT 5

4

1309919

CONECTOR W/O-Ring

5

42H32

HS CLAMP5

6

6509648

HOSE

7

17C614

BOLT

8

HOSE NLA - Was 6501980 - A

9

730963

CONNECTR W/O-Ring

10

6515590

PUMP See Illustration HYDRAULIC PUMP/ A1008

11

BELT NLA - hydraulic pump - Was 6515532 - A

12

6505435

SHEAVE See Illustration FIXED DRIVE SHEAVE/ B1358

13

17C418

BOLT

14

SHEAVE NLA - W/Ref. 15 - Was 6555344 - A

15

HUB NSS

16

17C620

BOLT

17

PLATE NLA - Was 6504389 - A
