HYDRAULIC CONTROL PEDALS Two Pedal - S/N 42946 & Below

Запчасти Bobcat 600s HYDRAULIC CONTROL PEDALS Two Pedal - S/N 42946 & Below HYDRAULIC SYSTEM

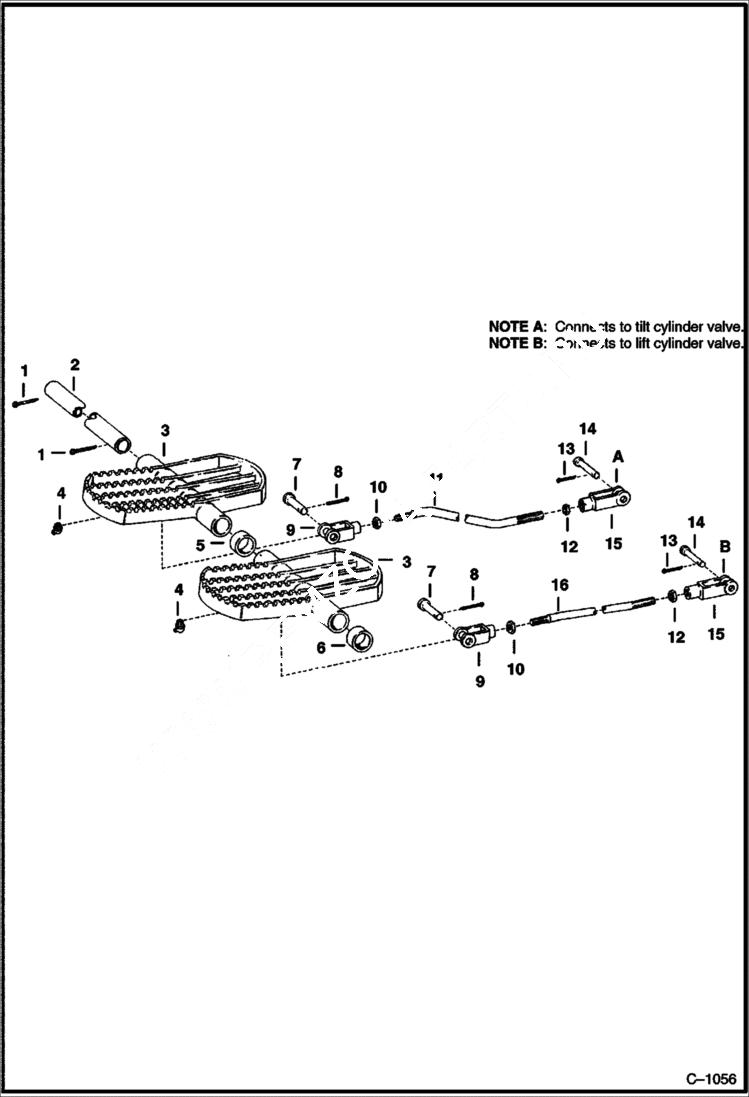

Схема запчастей Bobcat 600s - HYDRAULIC CONTROL PEDALS Two Pedal - S/N 42946 & Below HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1F632

PIN

2

ROD NLA - Was 6505668 - A

3

6555262

PEDAL

4

12H15

FITTING, GREASE 5

5

SPACER NLA - weld-on - Was 6502487

6

SPACER NLA - Was 6502725 - A

7

663350

PIN

8

1F416

PIN

9

6508041

YOKE

10

8D6

NUT 5

11

ROD NLA - Was 6505670 - A

12

8D8

NUT

13

1F308

PIN, COTTER

14

6505103

PIN

15

6515635

YOKE

16

ROD NLA - Was 6502374 - A
