Запчасти Bobcat 600s MAIN FRAME ATTACHING PARTS Left Side Illustrated MAIN FRAME

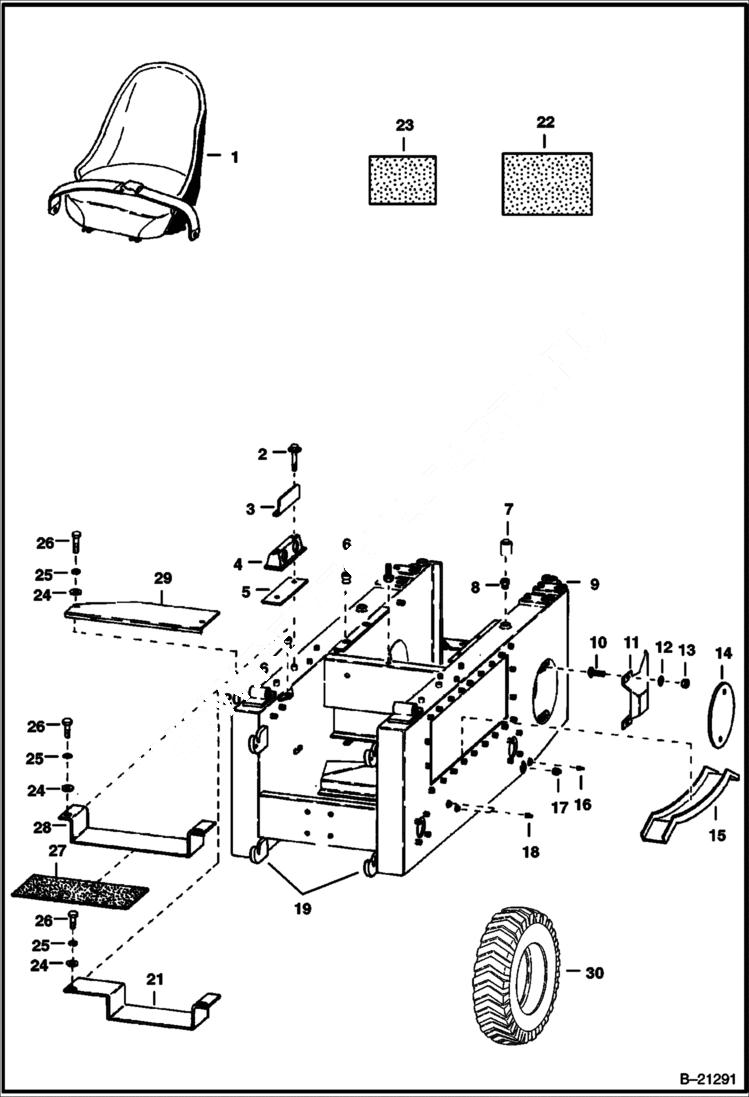

Схема запчастей Bobcat 600s - MAIN FRAME ATTACHING PARTS Left Side Illustrated MAIN FRAME

Артикул

Название

Примечание

Количество

1

SEAT See Illustration SEAT & SEAT MOUNTING/ B20855

2

6505059

BOLT

3

GUARD NLA - hand - Was 6503047 - A

4

PANEL NLA - Was 6503074 - A

5

6502694

GASKET

6

6515275

NUTSERT

7

6515173

CAP breather

8

19F7

BUSHING

9

CHANNEL NLA - Weld-on - Was 6502297 - A

10

7C820

BOLT

11

GUARD NLA - variable speed - Was 6502583 - A

12

25E21

WASHER 5

13

81D8

NUT

14

6554939

COVER

15

6505356

BAFFLE

16

40K4

PLUG

17

40K12

PLUG

18

40K2

PLUG

19

6502400

HOOK

20

6541218

MOUNT

21

6547472

GUARD

22

6547554

TREAD

23

6547555

TREAD

24

25E17

WASHER 5

25

4E6

WASHER

26

17C614

BOLT

27

6502459

SAFETY TREAD

28

6547556

GUARD

29

6544556

GUARD

30

TIRE & RIM See Illustration TIRES & RIMS/ B21223

Выбрано товаров: 30
