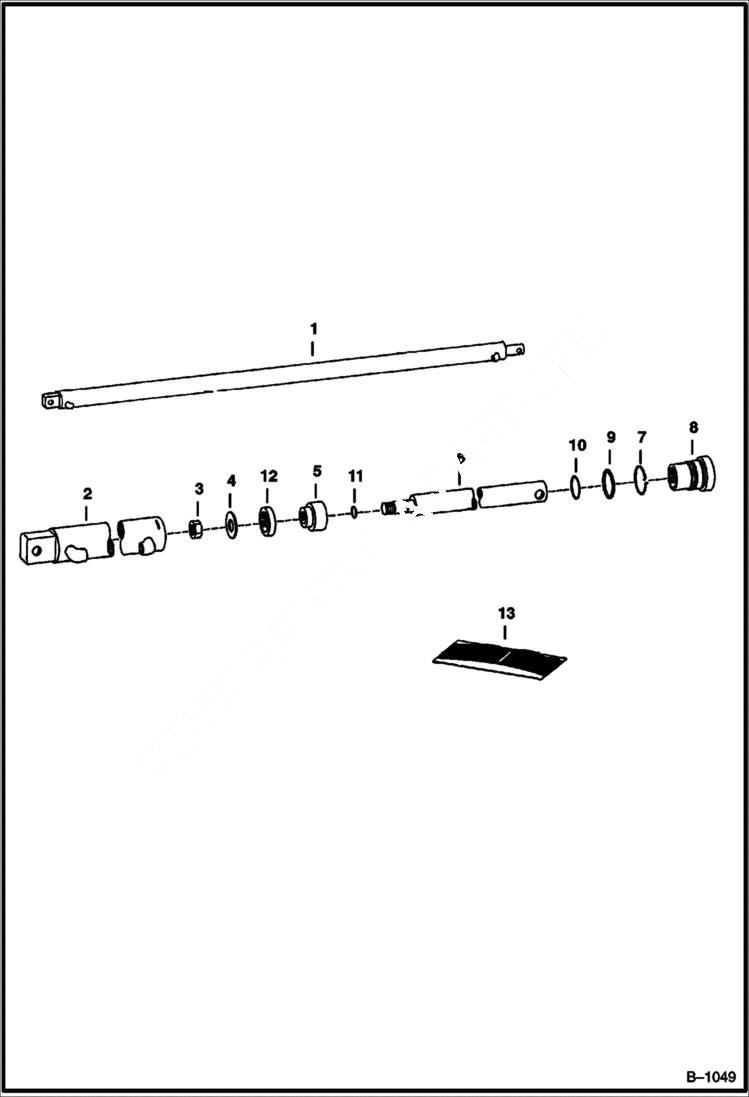

Запчасти Bobcat 600s LIFT CYLINDER Vertical Forklift ACCESSORIES & OPTIONS

1

6515321

CYLINDER Ref. 2 - 12

1

6515322

CYLINDER Ref. 2 - 12

2

CASE NLA - lift cylinder

3

6515336

NUT

4

6515335

WASHER

5

PISTON NLA - Was 6515334 - A

6

6515328

ROD 10 ft. (3048 mm)

6

6515329

ROD 12 ft. (3657,6 mm)

7

WIRE NSS - Was 6515330 - A

8

6515326

HEAD

9

O-RING NSS

10

O-RING NSS

11

O-RING NSS

12

PACKING NSS

13

SEAL KIT NLA - Ref. 9-12 - Was 6508741 - A
