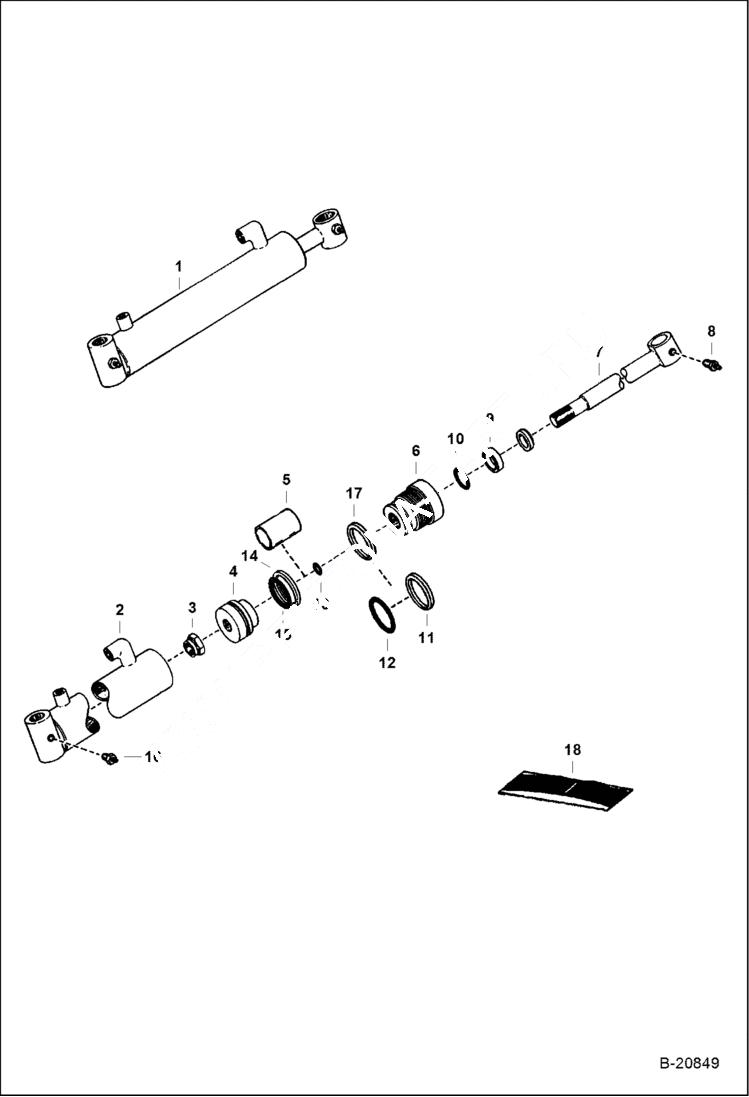

Запчасти Bobcat 600s TILT CYLINDER Vertical Forklift ACCESSORIES & OPTIONS

1

6506652

CYLINDER Ref. 2 - 7 & 9 - 15

2

CASE NLA

3

92D12

NUT See BTI126 Was 86D000012B - A

4

6558196

PISTON See BTI126

5

6506677

STOP

6

6504933

HEAD

7

6504951

ROD

8

15G606

SCREW

9

1657083

WIPER ROD wiper - Was NSS - D

10

6667323

SEAL u-cup - Was 6704243 - A

11

73K224

RING back-up - Was NSS - D

12

54K40124

O-RING Was 25K040124B - A

13

O-RING NSS

14

6516231

SEAL piston - Was NSS - D

15

54K30118

O-RING Was 25K030118B - A

16

10H25

FITTING, GREASE 5

17

7008781

SEAL, QUAD

18

7137771

SEAL KIT Ref. 3, 8-10, 13-15, & 17 - Was 6803472 - A
