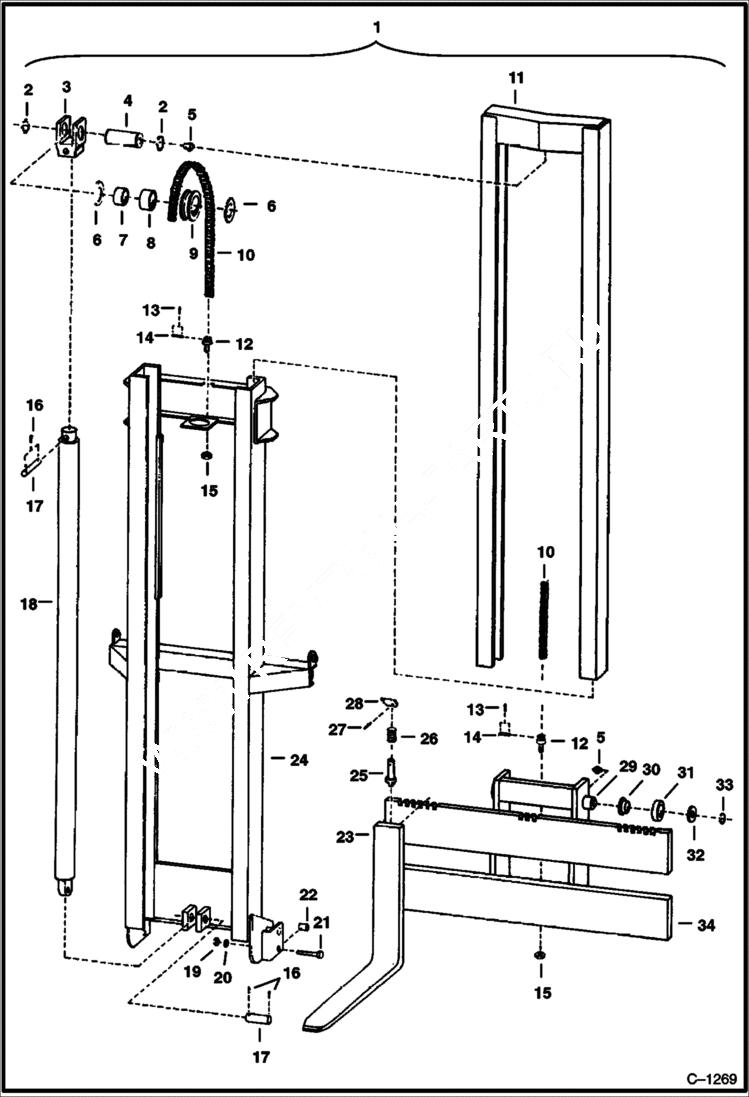

Запчасти Bobcat 600s VERTICAL MAST ACCESSORIES & OPTIONS

1

6506642

MAST 10 ft. (3048 mm) lift - Ref. 11, 24 & 29-34

1

6506693

MAST 12 ft. (3657,6 mm) lift - Ref. 11, 24 & 29-34

2

6515349

RETAINER

3

6515355

END

4

PIN NLA - Was 6515345 - A

5

6518200

FITTNG, GREASE 10

6

6515348

WASHER

7

6515350

RACE

8

6515346

BEARING

9

6515347

ROLLER

10

6515342

CHAIN 10 ft. (3048 mm) lift

10

6515343

CHAIN 12 ft. (3657,6 mm) lift

11

6515317

CHANNEL inner - 10 ft. (3048 mm) lift

11

6515318

CHANNEL inner - 12 ft. (3657,6 mm) lift

12

6515339

ANCHOR

13

1F316

PIN

14

6515340

PIN

15

6515344

NUT

16

1F416

PIN Was 1F-412 - D

17

6515356

PIN

18

6515321

CYLINDER See Illustration LIFT CYLINDER/ B1049 10 ft. (3048 mm) lift

18

6515322

CYLINDER See Illustration LIFT CYLINDER/ B1049 12 ft. (3657,6 mm) lift

19

61D8

NUT 5

20

4E8

WASHER

21

17C848

BOLT

22

BUSHING NLA - Was 6506678 - A

23

6540181

FORK W/Ref. 25-28

23

6540180

FORK 36'' (914,4 mm) - W/Ref. 25-28

23

6540179

FORK 42'' (1066,8 mm) - W/Ref. 25-28

23

6540178

FORK 48'' (1219,2 mm) - W/Ref. 25-28

24

6515319

CHANNEL outer - 10 ft. (3048 mm) lift

24

6515320

CHANNEL outer - 12 ft. (3657,6 mm) lift

25

6517884

PIN fork lock

26

6517882

SPRING fork lock

27

666888

PIN

28

6517883

LEVER fork lock

29

POST NSS - Weld On - Was 6508742 - A

30

BUSHING NLA - Was 6515354 - A

31

6515353

ROLLER

32

6515351

PAD

33

6515352

RETAINER retaining

34

6515338

CARRIAGE
