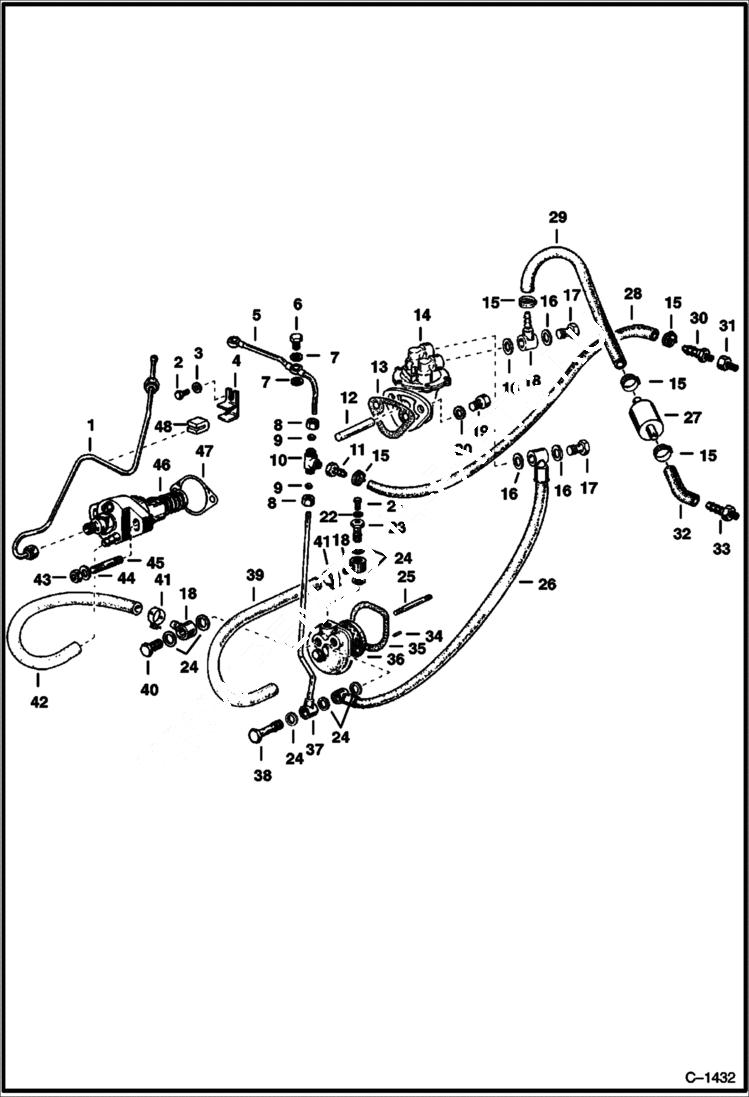

Запчасти Bobcat 600s FUEL PUMP, FILTER, PIPES & INJECTION PUMP POWER UNIT

1

FUEL LINE NLA - Was 6516950 - A

2

1CM820

BOLT Was 4CM820 - A

3

2EM6

WASHER

4

6516952

CLIP

5

6516971

FUEL LINE

6

SCREW NLA - Was 6516954 - A

7

6516955

WASHER sealing

8

58F2

NUT

9

57F2

SLEEVE

10

TEE NLA - Was 56F000002B - A

11

6518966

ADAPTER

12

6516956

PUSH ROD

13

GASKET NLA - Was 6517286 - A

14

PUMP NLA - fuel - Was 6516957 - A

15

42HS04

CLAMP, HOSE Was 6515575 - A

16

6516958

WASHER sealing

17

SCREW NLA - Was 6516960 - A

18

6516959

UNION banjo

19

SCREW NLA - cap - Was 4GM00820B - A

20

896263

SHIM

21

6516962

SCREW

22

WASHER NLA - sealing - Was 850842B - A

23

6516964

SCREW

24

6516965

WASHER sealing

25

6516966

STUD

26

6516970

HOSE

27

6511393

FILTER

28

6509579

HOSE fuel

29

6505863

HOSE fuel

30

6515159

INSERT

31

6517467

RESTRICTOR

32

6540716

HOSE

33

6505813

CONNECTOR

34

6516835

DOWEL

35

6516967

GASKET

36

FUEL FILTER NLA - Was 6516969 - A

36

ELEMENT NLA - fuel filter - Was 6516968 - A

37

6516971

FUEL LINE fuel

38

6516972

SCREW

39

6516973

HOSE fuel

40

6516974

SCREW

41

42HS04

CLAMP, HOSE Was 6515575 - A

42

HOSE NLA - fuel - Was 6516976 - A

43

1DM8

NUT

44

WASHER NLA - Was 229551B - A

45

6516807

STUD

46

6516978

PUMP fuel injection

47

6516979

SHIM

47

6516980

SHIM

47

SHIM NLA - Was 6516981 - A

48

6516953

MOUNT rubber
