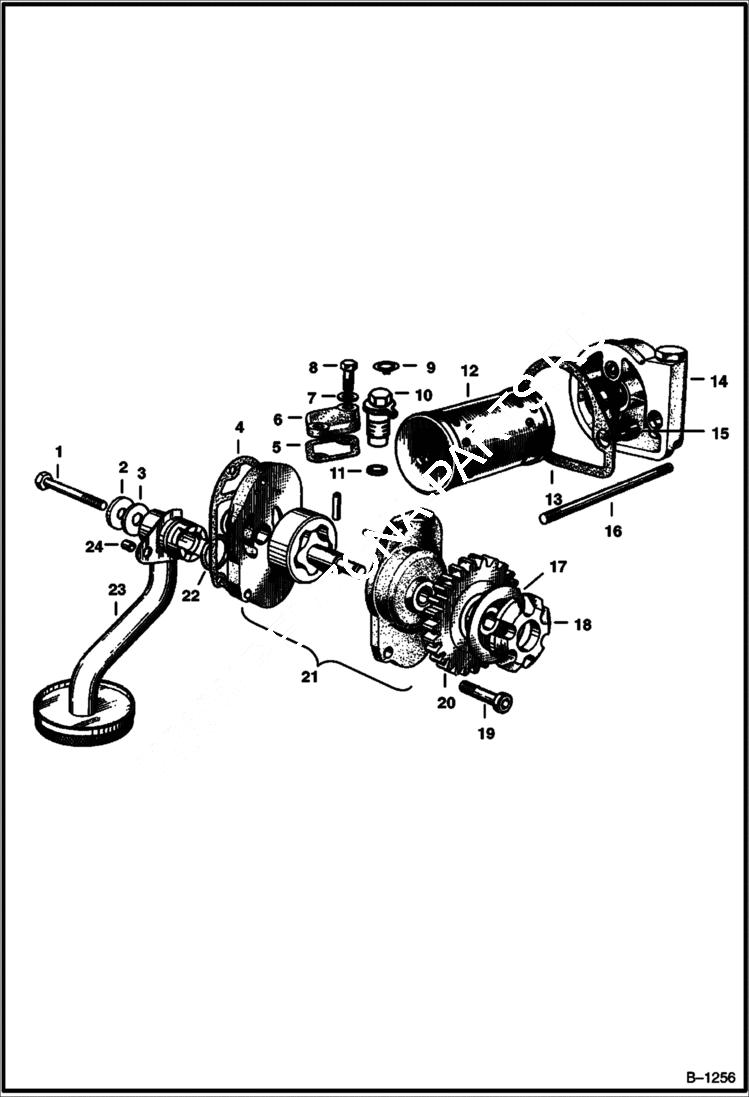

Запчасти Bobcat 600s OIL PUMP, STRAINER & FILTER POWER UNIT

1

SCREW Was 20CM00860B - A

2

6516983

WASHER Thick

3

6516984

WASHER Thin

4

6516985

GASKET

5

6516986

GASKET

6

6516987

PLATE oil transfer

7

896263

SHIM

8

1CM825

BOLT Was 4CM825 - A

9

6516848

SNAP RING

10

6516854

PLUNGER

11

6519406

PUMP ASSY. Was 6516879 - A

12

ELEMENT NLA - Oil Filter - Was 6516988 - A

13

GASKET NLA - Was 6516989 - A

14

6516990

HEAD filter

15

6516991

DOWEL

16

6516992

STUD

17

WASHER NSS

18

SPACER NSS - governor balls

19

SCREW NSS - cap

20

GEAR NSS

21

6516999

PUMP ASSY. W/Ref. 17-20

21

6519406

PUMP ASSY. W/Ref. 17-20

22

6517000

SEAL oil

23

6517001

STRAINER oil pump

24

6517002

DOWEL strainer
