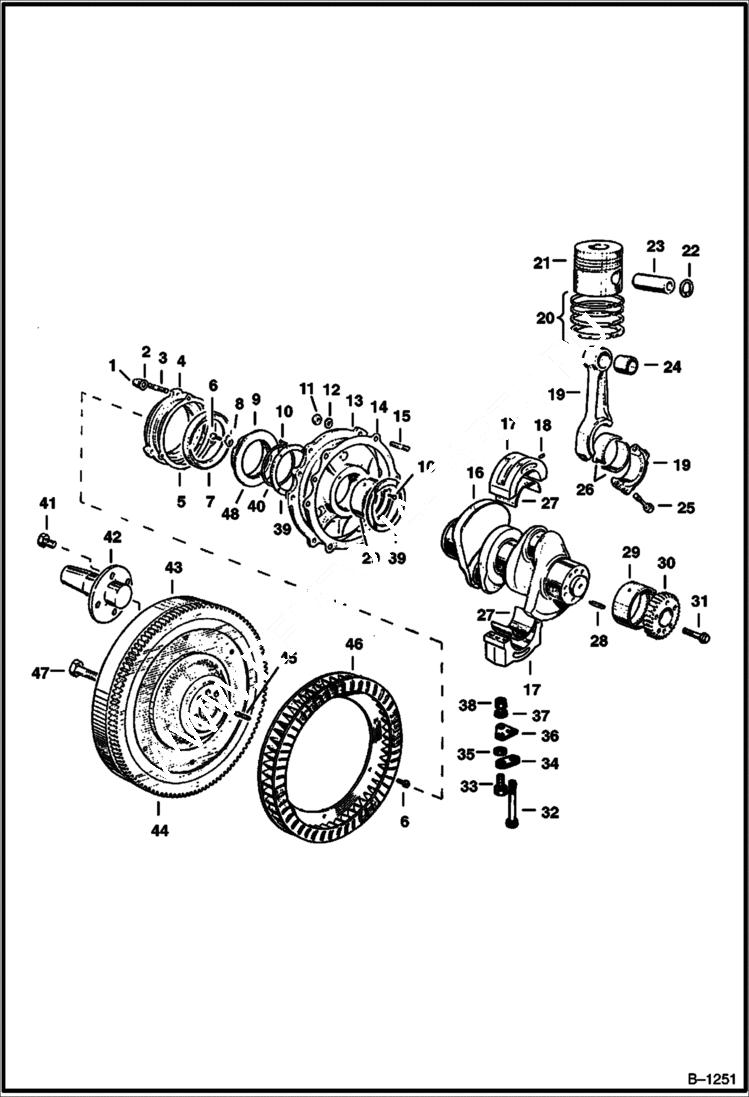

Запчасти Bobcat 600s CRANKSHAFT & PISTON POWER UNIT

1

NUT Was 13DM6 - A

2

2EM6

WASHER

3

6516876

STUD

4

HOUSING NLA - W/Ref. 7 - Was 6512232 - A

5

GASKET NLA - Was 6516878 - A

6

SCREW NLA - pan head - Was 13GM06012B - A

7

SEAL NSS - oil - W/Ref. 4 - Was 6512232 - A

8

KEY NLA - Was 6516881 - A

9

COLLAR NLA - Standard - Was 6519621 - A

9

COLLAR NLA - .020'' (0,51 mm) Undersize

9

COLLAR NLA - .040'' (1,02 mm) Undersize

10

PIN NLA - Was 6516883 - A

11

1DM10

NUT

12

2EM10

WASHER

13

6516884

HOUSING main bearing

14

GASKET NLA - Was 6516885 - A

15

6516761

STUD

16

6516886

CRANKSHAFT

17

6516887

HOUSING W/Ref. 18

18

6516888

PIN spoiler

19

ROD NLA - connecting - Was 6516889 - A

20

6516951

RING SET Standard

20

6516961

RING SET .020'' (0,51 mm) Oversize

20

6516963

RING SET .040'' (1,02 mm) Oversize

21

6516899

PISTON Standard - 20-23

21

PISTON NLA - Ref. 20-23 - .020'' (0,51 mm) Oversize - Was 6516900 - A

21

PISTON NLA - Ref. 20-23 - .040'' (1,02 mm) Oversize - Was 6516901 - A

22

6516902

SNAP RING

23

6516903

PIN piston

24

6516904

BUSHING rod

25

6516905

SCREW

26

6516906

BEARING rod - Standard

26

6516908

BEARING rod - .020'' (0,51 mm) Undersize

26

6516910

BEARING rod - .040'' (1,02 mm) Undersize

27

6516911

BEARING intermediate

27

6516913

BEARING intermediate - .020'' (0,51 mm) Undersize

27

6516915

BEARING intermediate - .040'' (1,02 mm) Undersize

28

6516916

DOWEL

29

6516917

BEARING main - Standard

29

BEARING NLA - main - .020'' (0,51 mm) Undersize - Was 6516919 - A

29

6516921

BEARING main - .040'' (1,02 mm) Undersize

30

6516922

GEARWHEEL

31

6516923

SCREW

32

6516924

SCREW

33

1CM620

BOLT Was 4CM620 - A

34

6516770

PLATE locking

35

6516766

SPACER

36

6516925

WASHERPLATE

37

6516775

WASHER

38

NUT M6 - Plated - Was 13DM6 - A

39

6516926

WASHER thrust

40

6516927

SEAL oil

41

SCREW NLA - Was 4CM01025B - A

42

6516928

SHAFT

43

6516929

FLYWHEEL W/Ref. 44

44

6516931

RING GEAR Use W/Lucas Starter

44

6516932

RING GEAR Use W/Delco Starter

45

6516933

DOWEL flywheel

46

6516934

FAN flywheel

47

SCREW NLA - flywheel - Was 6516935 - A

48

COLLAR NLA - .10'' (0,25 mm) Undersize

48

COLLAR NLA - .30'' (0,76 mm) Undersize
