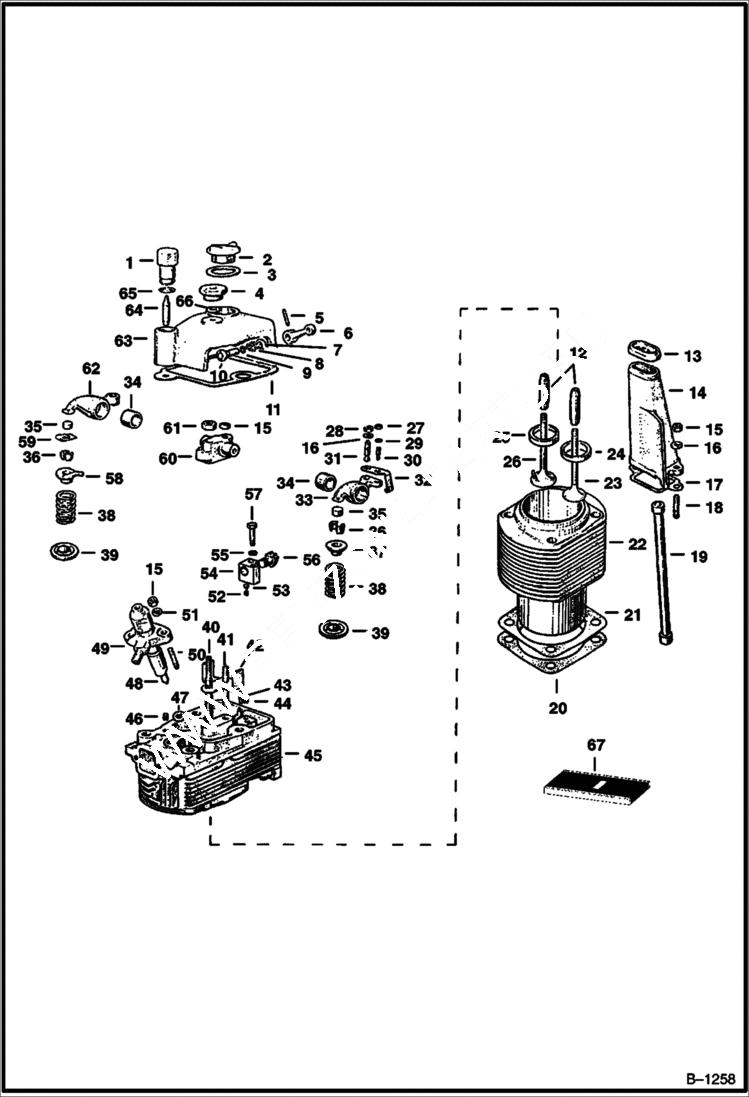

Запчасти Bobcat 600s CYLINDER & CYLINDER HEAD POWER UNIT

1

PLUNGER NLA - priming - Was 6516793 - A

2

CAP NLA - oil filler - Was 6516794 - A

3

6516795

WASHER

4

6516796

NUT

5

ROLL PIN NLA - Was 300232B - A

6

6516798

LEVER decompressor

7

2EM10

WASHER

8

6516800

SPRING

9

6516801

SEAL

10

6516802

SHAFT

11

GASKET NLA - Was 6516803 - A

12

GUIDE NLA - valve - Was 6516804 - A

13

SEAL NLA - Was 6516805 - A

14

6516806

COVER

15

1DM8

NUT

16

896263

SHIM Was 896293 - D

17

GASKET NLA - Was 6516809 - A

18

6516810

STUD

19

6516811

PUSH ROD

20

SHIM NLA - cylinder - .015'' (0,38 mm) - Was 6516812 - A

21

SHIM NLA - cylinder - .005'' (0,13 mm) - Was 6516813 - A

22

6516814

CYLINDER

23

6516815

VALVE exhaust

24

6516816

INSERT exhaust valve

25

INSERT NLA - inlet valve - Was 6516817 - A

26

6516818

VALVE inlet

27

32DM60

NUT

28

32DM80

NUT

29

2EM6

WASHER

30

6516822

SCREW

31

6516823

SCREW

32

6516824

PAWL

33

6516825

ARM rocker, exh. valve - W/Ref. 34

34

BUSHING NLA - Was 6516826 - A

35

6516827

CAP valve

36

6516828

KEY retainer, valves

37

6516829

COLLAR

38

6516830

SPRING

39

6516831

CUP

40

6516832

STUD

41

6516833

STUD

42

6516834

PLATE

43

6516835

DOWEL

44

6516836

ROLL PIN

45

6516837

HEAD cylinder - W/Ref. 12, 24 & 25

46

6516838

ROLL PIN

47

6516839

WASHER sealing

48

6516840

NOZZLE

49

6516791

INJECTOR fuel - W/Ref. 48

50

6516807

STUD

51

4E5

WASHER

52

6516821

SPRING

53

6516762

PAD

54

6516763

BLOCK decompressor ratchet

55

4E4

WASHER

56

6516764

RATCHET decompressor

57

SCREW Was 20CM00635B - A

58

6516765

COLLAR

59

6516772

CLIP

60

6516774

SUPPORT rocker arm

61

1DM10

NUT

62

6516781

ROCKER ARM inlet valve

63

6516785

COVER W/Ref. 1, 5-10, 54-56, 64 & 65

64

6516858

TUBE priming plunger

65

SEAL NLA - priming plunger - Was 6516797 - A

66

6516799

WASHER

67

GASKET KIT NLA - Ref. 11, 13, 47, 59 & 66 - Was 6518088 - A
