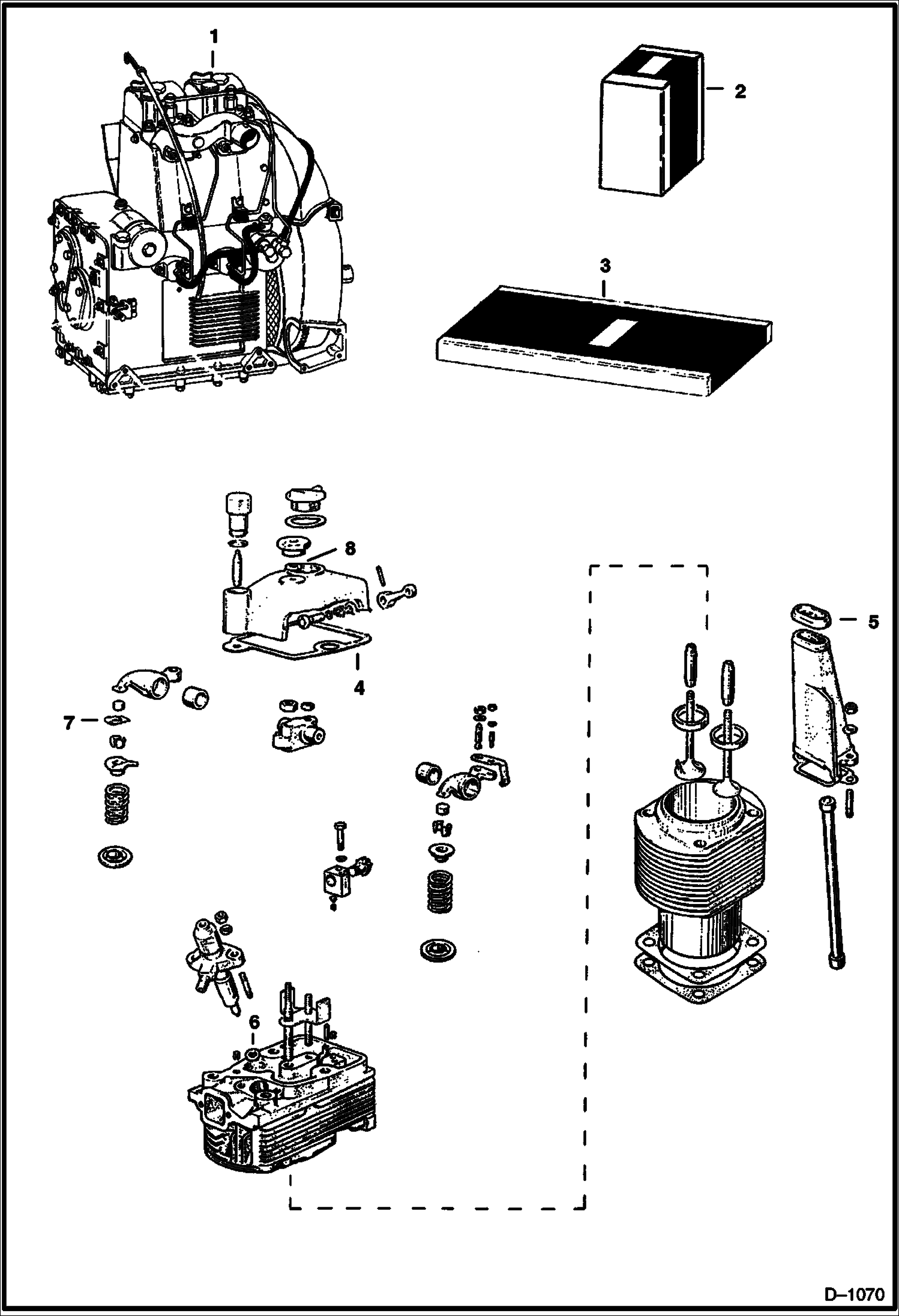

Запчасти Bobcat 600s PETTER DIESEL ENGINE POWER UNIT

1

ENGINE NLA - BA-2 Petter

2

SWITCH NLA - hi-temp. shut-off - Was 6519264 - A

3

GASKET KIT NLA - W/Ref. 4-8 - Was 6518088 - A

4

GASKET See Illustration CYLINDER & CYLINDER HEAD/ B1258 NLA - Ref. 11 - Was 6516803 - A

5

SEAL See Illustration CYLINDER & CYLINDER HEAD/ B1258 NLA - Ref. 13 - Was 6516805 - A

6

6516839

WASHER See Illustration CYLINDER & CYLINDER HEAD/ B1258 Ref. 47

7

6516772

CLIP See Illustration CYLINDER & CYLINDER HEAD/ B1258 Ref. 59

8

6516799

WASHER See Illustration CYLINDER & CYLINDER HEAD/ B1258 Ref. 66
