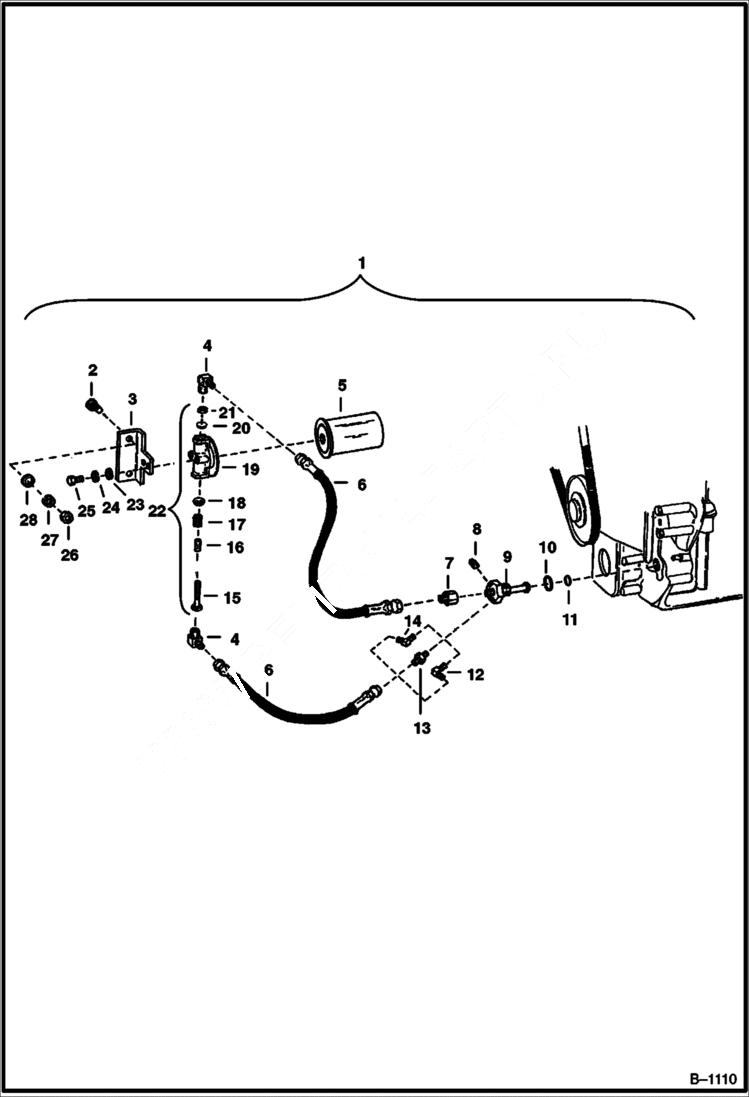

Запчасти Bobcat 600s FULL FLOW OIL FILTER W/Relief Valve POWER UNIT

1

KIT NLA - Order Kit 6508066

2

7C820

BOLT carriage

3

BRACKET NLA

4

661844

ELBOW

5

6515541

ELEMENT

6

6501055

HOSE

7

ADAPTER NLA - Was 93F000005B - A

8

40K4

PLUG

9

6505434

ADAPTER

10

25K40120

O RING 10

11

25K40024

O RING 10

12

83F5

ELBOW Was 85F-5 - A

13

89F5

CONNECTR

14

ELBOW NLA - Was 84F000005B - A

15

85G624

PAN HEAD relief valve

16

SPACER NLA - Relief Valve - Was 6515050 - A

17

SPRING NSS - compression

18

PLATE NSS - relief valve - Was 6515053 - A

19

HEAD NSS - filter

20

POPPET NSS - relief valve

21

6515227

NUT relief valve

22

6541193

FILTER ASSY. Ref. 5 & 15 - 21

23

25E13

WASHER 5

24

4E4

WASHER

25

17C412

BOLT 5

26

61D8

NUT 5

27

4E8

WASHER

28

25E21

WASHER 5
